Step 2: Buy a VPC Endpoint

Updated on 2025-01-14 GMT+08:00

Scenarios

After you create a VPC endpoint service, you also need to buy a VPC endpoint to access the VPC endpoint service.

This section describes how to buy a VPC endpoint in another VPC of your own.

NOTE:

Select the same region and project as those of the VPC endpoint service.

Procedure

  1. Go to the VPC endpoint list page.
  2. On the VPC Endpoints page, click Buy VPC Endpoint.

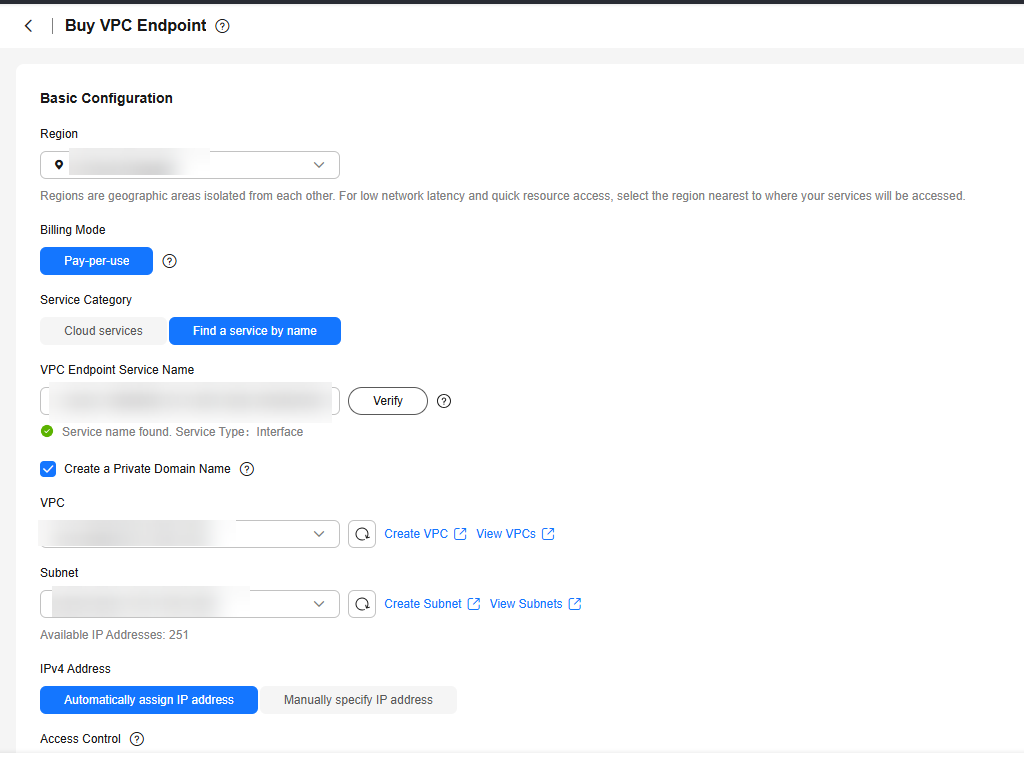

    The Buy VPC Endpoint page is displayed.

  3. Configure required parameters.
    Table 1 VPC endpoint parameters

    Parameter

    Example Value

    Description

    Region

    CN-Hong Kong

    Specifies the region where the VPC endpoint is to be located. This region is the same as that of the VPC endpoint service.

    Billing Modes

    Pay-per-use

    Specifies the billing mode of the VPC endpoint. VPC endpoints can be used or deleted at any time.

    VPC endpoints support only pay-per-use billing based on the usage duration.

    Service Category

    Find a service by name

    There are two options:

    • Cloud services: Select this value if the target VPC endpoint service is a cloud service.
    • Find a service by name: Select this value if the target VPC endpoint service is a private service of your own.

    In this example, select Find a service by name.

    VPC Endpoint Service Name

    -

    This parameter is available only when you select Find a service by name for Service Category.

    Enter the VPC endpoint service name recorded in 6 and click Verify.

    • If "Service name found." is displayed, proceed with subsequent operations.
    • If "Service name not found." is displayed, check whether the region is the same as that of the VPC endpoint service or whether the name entered is correct.

    Create a Private Domain Name

    -

    If you want to access a VPC endpoint using a domain name, select Create a Private Domain Name.

    This parameter is mandatory when the VPC endpoint will be used to access an interface VPC endpoint service.

    VPC Endpoint Type

    Interface

    This parameter is displayed based on the type of the VPC endpoint service to be connected.

    • If you are going to connect to an interface VPC endpoint service, Interface is displayed by default.
    • If you are going to connect a gateway VPC endpoint service, Gateway is displayed by default.

    VPC Endpoint Edition

    Professional

    This parameter is mandatory when you are going to connect to an interface VPC endpoint service.

    Professional is selected by default.

    Professional VPC endpoints are available in the CN East2, ME-Riyadh, CN East-Qingdao, and AF-Cairo regions. A VPC endpoint supports up to 10 Gbit/s of bandwidth and IPv4 and IPv6 dual stack.

    Network Type

    IPv4

    This parameter is mandatory when you are going to connecting to an interface VPC endpoint service whose Mode is Advanced.

    This parameter can be set to IPv4 or Dual stack.

    • IPv4: Only IPv4 networks are supported.
    • Dual stack: Both IPv4 and IPv6 networks are supported.

    VPC

    -

    Specifies the VPC where the VPC endpoint is to be deployed.

    Subnet

    -

    Specifies the subnet where the VPC endpoint is to be located.

    IPv4 Address

    -

    IPv4 addresses can be automatically assigned or manually specified.

    IPv6 Address

    -

    This parameter is mandatory when you select Professional for VPC Endpoint Edition and Dual stack for Network Type.

    IPv6 addresses can be automatically assigned or manually specified.

    Access Control

    Enable

    This parameter is available only when you create a VPC endpoint for connecting to an interface VPC endpoint service.

    It controls IP addresses and CIDR blocks that are allowed to access the VPC endpoint.

    • If Access Control is enabled, only IP addresses or CIDR blocks in the whitelist are allowed to access the VPC endpoint.
    • If Access Control is disabled, any IP address or CIDR block can access the VPC endpoint.

    Whitelist

    -

    This parameter is available only when you create a VPC endpoint for connecting to an interface VPC endpoint service.

    It lists the IP addresses or CIDR blocks that are allowed to access the VPC endpoint. You can add a maximum of 20 records.

    Policy

    -

    Specifies the VPC endpoint policy.

    VPC endpoint policies are a type of resource-based policies. You can configure a policy to control which principals can use the VPC endpoint to access VPC endpoint services.

    Tag

    example_key1

    example_value1

    Specifies the tag that is used to classify and identify the VPC endpoint.

    This parameter can be modified after you buy a VPC endpoint.

    Description

    -

    Provides supplementary information about the VPC endpoint.

    Table 2 Tag requirements for VPC endpoints

    Parameter

    Requirement

    Tag key

    • Cannot be left blank.
    • Must be unique for each resource.
    • Can contain a maximum of 36 characters.
    • Can contain only letters, digits, hyphens (-), and underscores (_).

    Tag value

    • Cannot be left blank.
    • Can contain a maximum of 43 characters.
    • Can contain only letters, digits, hyphens (-), and underscores (_).
  4. Confirm the settings and click Next.
    • If all of the settings are correct, click Submit.
    • If any of the settings are incorrect, click Previous to modify the parameter settings as needed, and click Submit.
  5. Manage the connection of the VPC endpoint.
    If the status of the VPC endpoint changes to Accepted, the VPC endpoint is connected to the required VPC endpoint service. If the status is Pending acceptance, connection approval is enabled for the VPC endpoint service, ask the owner of the VPC endpoint service to perform the following operations:
    1. Locate the VPC endpoint service and click its name.
    2. On the displayed page, select the Connection Management tab.
      • If you allow a VPC endpoint to connect to this VPC endpoint service, locate the VPC endpoint and click Accept in the Operation column.
      • If you do not allow a VPC endpoint to connect to this VPC endpoint service, click Reject in the Operation column.
    3. Go back to the VPC endpoint list and check whether the status of the target VPC endpoint changes to Accepted. If yes, the VPC endpoint is connected to the VPC endpoint service.
  6. In the VPC endpoint list, click the ID of the target VPC endpoint to view its details.

    After a VPC endpoint is created, a private IP address is assigned together with a private domain name if you select Create a Private Domain Name during creation.

    You can use the private IP address or private domain name to access the VPC endpoint service.

Configuration Verification

Remotely log in to an ECS in VPC 1 by running an SSH command and access the private IP address or private domain name of the VPC endpoint, as shown in the following figure.

ssh -p Terminal port IP address of the VPC endpoint
CAUTION:

According to the SSH protocol, set the service port to 22 when creating a VPC endpoint service. Or, the SSH command cannot be used for verification.
