Concepts

There are two dimensions: risk dimension and product dimension. The risk dimension consists of five sub-dimensions: performance efficiency, reliability, security, cost optimization, and service quota. The check results are classified into risky, secure, and N/A. In terms of service loss, risky check results are further classified into high-risk, medium-risk, and low-risk.

• High-risk: Risks of this level can cause service system damage, and major incidents such as service interruption, asset damage, and data loss.
• Medium-risk: Risks of this level can damage the service system.
• Low-risk: Risks of this level require your attention.

OA uses this feature to check whether your account is about to reach the service quota limit and remind you to expand your service quotas as soon as possible. Otherwise, resources cannot be created during scale-out, which affects system availability.

OA identifies capacity risks of your services or resources and predicts possible capacity risks based on the pressure coefficient.

In an aggregation period, Cloud Eye calculates the average, maximum, minimum, sum, or variance value based on sample raw data reported by each cloud service.

After risk identification is complete, a capacity report is automatically generated for you to download.

Pressure coefficient indicates the pressure multiplier of a resource in a special scenario or period.

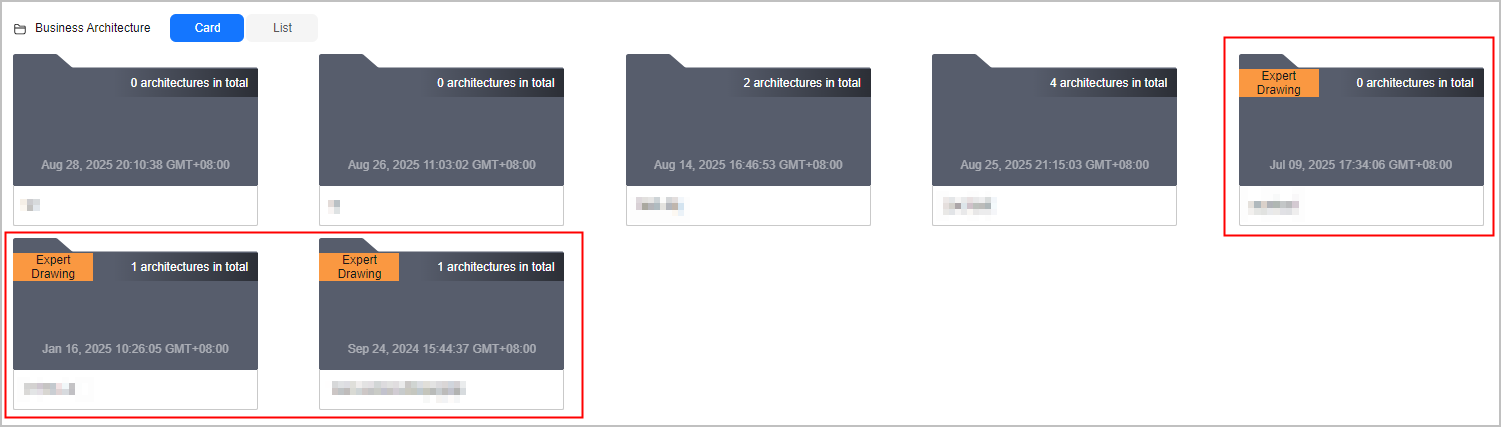

After a Technical Account Manager (TAM) draws an architecture diagram using the architecture design feature of the management tool module and synchronizes the architecture diagram to the architecture design of OA. Architectures labeled Expert Drawing can only be viewed but cannot be edited, as shown in Figure 1.

Figure 1 TAM drawing
