Configuring a Recording Rule

Recording rules can be used for secondary development of metric data. Some queries may require a large amount of computing on the query end, resulting in high pressure on this end. By setting recording rules, you can move the computing process to the write end, reducing resource usage on the query end. Especially in large-scale clusters and complex service scenarios, recording rules can reduce PromQL complexity, thereby improving the query performance and preventing slow user configuration and queries.

Prerequisite

Both your service and CCE cluster have been connected to a Prometheus instance for CCE. For details, see Prometheus Instance for CCE.

Configuring a Recording Rule

  1. Log in to the AOM 2.0 console.
  2. In the navigation pane on the left, choose Metric Analysis > Prometheus Monitoring.
  3. In the instance list, click a Prometheus instance for CCE.

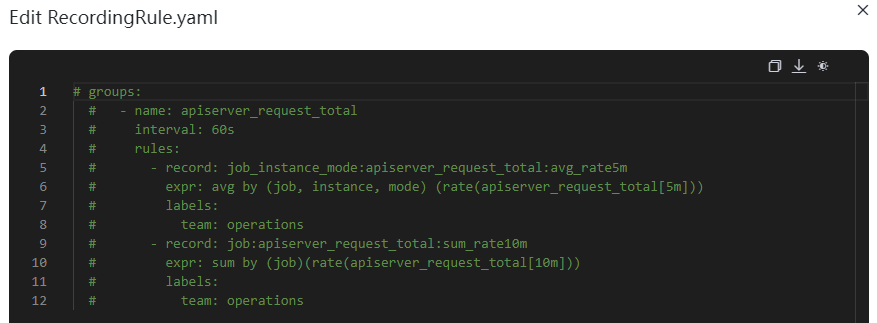

  4. In the navigation pane on the left, choose Settings. In the Recording Rules area, click Edit RecordingRule.yaml.
  5. In the dialog box that is displayed, delete the default content and enter a custom recording rule.

    Only one RecordingRule.yaml file needs to be configured for a cluster. Each rule group name must be unique.

    Table 1 Recording rule parameters

    Parameter

    Description

    groups

    Rule group. You can set multiple rule groups in one RecordingRule.yaml file.

    name

    Rule group name. Each rule group name must be unique.

    interval

    (Optional) Execution interval of a rule group. The default value is 60s.

    rules

    Rule. A rule group can contain multiple rules.

    record

    Name of a rule. The name must comply with Prometheus metric name specifications.

    expr

    Calculation expression. It is used to calculate metric values. It must comply with PromQL requirements.

    labels

    (Optional) Label of a metric.

    Example of a recording rule:

    groups:
  - name: apiserver_request_total
    interval: 60s
    rules:
      - record: apiserver_request_rate
        expr: avg by (job, instance, mode) (rate(apiserver_request_total[5m]))
        labels:
          team: operations
      - record: job:apiserver_request_total:sum_rate10m
        expr: sum by (job)(rate(apiserver_request_total[10m]))
        labels:
          team: operations

  6. Click OK.

Viewing Recording Rule Metrics

After a recording rule is configured, you can view its metrics on the Metric Browsing page of AOM or using Grafana.

Method 1: Viewing Metrics on the Metric Browsing Page of AOM

  1. On the Metric Analysis > Metric Browsing page, select a Prometheus instance for which a recording rule has been configured from the drop-down list.
  2. Click All metrics and enter the name of a recording rule metric in the search box to view its details.

Method 2: Viewing Metrics Using Grafana

For details, see Viewing Metric Data in AOM Using Grafana.
