Downloading Offline Logs

The offline log page displays detailed logs about the network users' access to all streaming domain names. You can download logs of a specific period to analyze the access to your service resources.

Log records are for data analysis and reference only. Service fees are charged based on bills.

Log Download

You can download logs of the past 90 days.
You can query and download logs in a time span of up to seven days. To query and download logs in a longer time span, perform the operations multiple times.

Log Description

Log package name format: Streaming domain name_Log generation time.log.gz

Log generation rule: By default, logs are collected at an interval of 5 minutes. If no request is sent to a domain name, no log data package is generated. Generally, the complete log file can be obtained four hours after the live stream push is completed.

Log format

Cloud Stream Live
[time_local]|play_domain|client_ip|cdn_ip|url|http_code|cache_hit|scheme|method|period_bytes_sent|period_duration|ua|refer|app|stream

LLL
[time_local]|play_domain|client_ip|cdn_ip|url|http_code|cache_hit|scheme|method|period_bytes_sent|period_duration|ua|refer|app|stream

If a field is not involved or is empty, the value of this field will be a hyphen (-). If the field information contains spaces, each space must be enclosed in double quotation marks ("").

Log example

Cloud Stream Live

[06/Mar/2023:06:51:26 +0800]|pullexample.huaweicloud.com|49.1.1.*|42.11.1.2|http://pullexample.huaweicloud.com/live/stream-123.flv|200|HIT|HTTP|GET|1024|4|Lavf/58.12.100|-|live|stream-123

LLL

[06/Mar/2023:06:51:26 +0800]|pullexample.huaweicloud.com|49.1.1.*|42.11.1.2|webrtc://pullexample.huaweicloud.com/live/stream-123.sdp|200|HIT|WebRTC|GET|1024|4|Lavf/58.12.100|-|live|stream-123

Table 1 describes the fields.

**Table 1** Log fields
Field Name	Field Description	Example
time_local	Local time in the common format, which is used to record the time when statistics are collected.	[06/Mar/2023:06:51:26 +0800]
play_domain	Accelerated domain name added to CDN.	pullexample.huaweicloud.com
client_ip	IP address of the client.	49.1.1.*
cdn_ip	IP address of the CDN node accessed by the viewer.	42.11.1.2
url	Complete access URL.	Cloud Stream Live http://pullexample.huaweicloud.com/live/stream-123.flv LLL webrtc://pullexample.huaweicloud.com/live/stream-123.sdp
http_code	HTTP status code.	200
cache_hit	Cache hit status. HIT MISS	HIT
scheme	Access protocol. HTTP HTTPS RTMP WebRTC	Cloud Stream Live: HTTP, HTTPS, or RTMP LLL: WebRTC
method	HTTP method.	GET
period_bytes_sent	Number of bytes sent in a statistical period. The statistical period is the value of period_duration.	1024
period_duration	Statistical period, in seconds.	4
ua	User agent information.	Lavf/58.12.100
refer	Referer information.	-
app	App name	live
stream	Stream name	stream-123

Downloading Logs

Log in to the Live console.
In the navigation pane, choose Logs > Offline log download.
On the displayed page, specify the domain name and time.
The system displays all logs generated in the specified time. A log file is generated every 5 minutes.

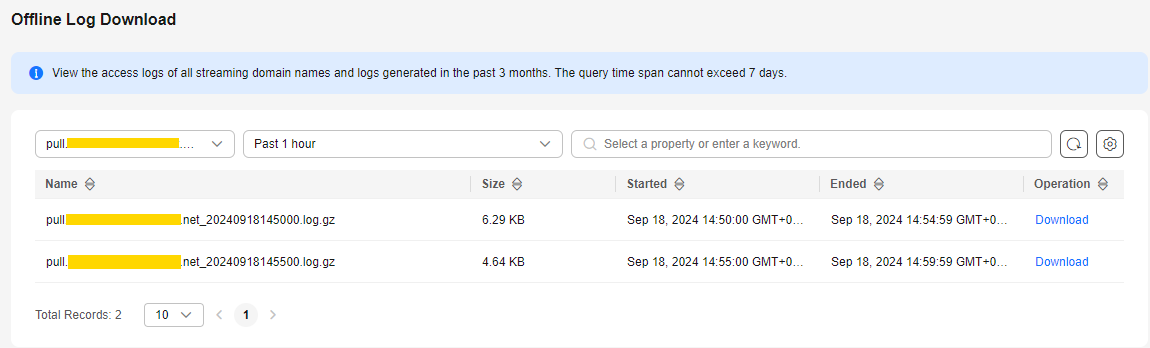

Figure 1 Downloading logs
Click Download in the Operation column in the row containing the log to be downloaded and download the log to your local PC.
