How Do I Handle an Import Failure of a Key Pair Created Using PuTTYgen?

Symptom

When a key pair created using PuTTYgen was imported to the management console, the system displayed a message indicating that importing the public key failed.

Possible Causes

The format of the public key content does not meet system requirements.

Storing a public key by clicking Save public key will change the format of the public key content. Importing such a public key will fail because the key does not pass the format verification by the system.

Procedure

Use the locally stored private key and PuTTY Key Generator to restore the format of the public key content. Then, import the public key to the management console.

1. Restore the public key file in the correct format.
   1. Double-click PuTTYgen.exe. The PuTTY Key Generator page is displayed, as shown in Figure 1.

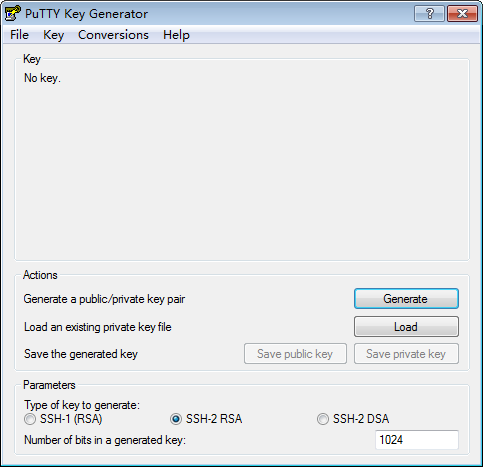

      Figure 1 Main interface of the PuTTY Key Generator

   2. Click Load and select the private key.

      The system automatically loads the private key and restores the format of the public key content in PuTTY Key Generator. The content in the red box in Figure 2 is the public key with the format meeting system requirements.

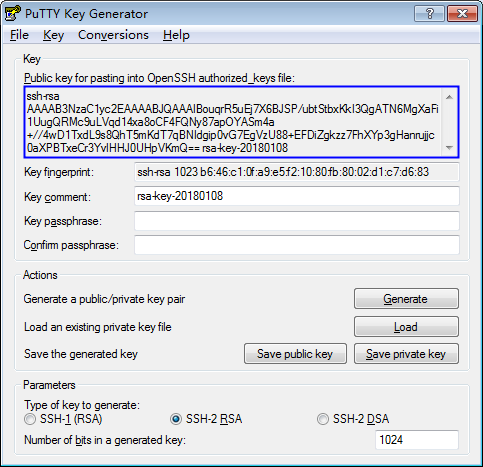

      Figure 2 Restoring the format of the public key content

   3. Copy the information in the blue square and save it in a local .txt file.


      Do not save the public key by clicking Save public key. Saving a public key by clicking Save public key of PuTTYgen will change the format of the public key content. Such a key cannot be imported to the management console.

2. Import the public key file in the correct format to the KPS console.
   1. Log in to the management console.
   2. Click . Choose Security & Compliance > Data Encryption Workshop.
   3. In the navigation pane, click Key Pair Service.
   4. On the Key Pair Service page, click Import Key Pair.
   5. Click Select File, select the .txt public key file, or copy and paste the public key content to the text box of the public key content.
   6. Click OK to import the public key file.
