SQL Execution Monitoring

SQL Monitoring Data

SQL monitoring data records various resource usage details of the query job (including memory, disk spills, CN and DN durations, OBS access time, and LakeFormation access time) and SQL execution plan information (EXPLAIN/EXPLAIN PERFORMANCE).

The fields displayed in the SQL monitoring data are as follows:

Table 1 Fields displayed in SQL monitoring data

Field Name

Subfield Name

Type

Description

session_id

-

text

Session ID of a statement.

statement_id

-

text

Statement ID.

start_time

-

timestampt with zone

Start time of a statement.

finish_time

-

timestampt with zone

Reported/End time of a statement.

duration

-

bigint

Statement running duration.

Unit: ms.

cn_actor_info

-

text

Serverless information of a CN.

actor_name

text

Name of the pod where a CN is.

actor_ip

text

IP address of the pod where a CN is.

actor_id

text

Name of a CN within a pod.

dn_actor_info

-

text

Serverless information of a DN.

actor_name

text

Name of the pod where a DN is.

actor_ip

text

ID of the pod where a DN is.

actor_id

text

Name of a DN within a pod.

startup_coordinator_duration

-

bigint

Duration to start a CN.

Unit: ms.

create_session_duration

-

bigint

Duration to create a session.

Unit: ms.

enqueue_statement_duration

-

bigint

Duration to add a statement to a task queue.

Unit: ms.

queue_duration

-

bigint

Queuing duration of a statement in a task queue.

Unit: ms.

write_resultset_duration

-

bigint

Duration to write a statement to a result set.

Unit: ms.

queryid

-

bigint

ID of a debug query.

status

-

text

Statement status.

abort_info

-

text

Error message.

schemaname

-

text

Schema name when a statement is executed.

query

-

text

Statement.

query_plan

-

text

Explain information when GUC parameter resource_track_level is set to query. Explain performance information when set to perf.

pid

-

bigint

Thread ID.

parse_time

-

bigint

Time from parsing to execution start.

Unit: ms.

estimate_memory

-

int

Estimated memory of a statement.

Unit: MB.

dn_time

-

text

DN duration information.

min_dn_time

bigint

Minimum DN duration.

Unit: ms.

max_dn_time

bigint

Maximum DN duration.

Unit: ms.

average_dn_time

bigint

Average DN duration.

Unit: ms.

dntime_skew_percent

int

Skew percentage of DN duration.

Unit: %.

dn_cpu_time

-

text

DN CPU duration.

min_cpu_time

bigint

Minimum DN CPU duration.

Unit: ms.

max_cpu_time

bigint

Maximum DN CPU duration.

Unit: ms.

average_cpu_time

bigint

Average DN CPU duration.

Unit: ms.

total_cpu_time

bigint

Total DN CPU duration.

Unit: ms.

cpu_skew_percent

int

Skew percentage of DN CPU duration.

Unit: %.

dn_peak_memory

-

text

DN peak memory information.

min_peak_memory

int

Minimum peak memory of all DNs.

Unit: MB.

max_peak_memory

int

Maximum peak memory of all DNs.

Unit: MB.

average_peak_memory

int

Average peak memory of all DNs.

Unit: MB.

memory_skew_percent

int

Memory skew rate.

Unit: %.

dn_spill_info

-

text

DN disk spill information.

spill_info

text

Number of DNs with disk spills.

min_spill_size

bigint

Maximum spill size.

Unit: MB.

max_spill_size

bigint

Minimum spill size.

Unit: MB.

average_spill_size

bigint

Average spill size.

Unit: MB.

spill_skew_percent

int

Spill skew rate.

Unit: %.

previous_billed_bytes

-

bigint

Original billing scan volume.

Unit: byte.

disk_cache_info

-

text

Cache information.

disk_cache_hit_ratio

numeric

Disk cache hit rate.

disk_cache_disk_read_size

bigint

Read size of disk cache.

Unit: byte.

disk_cache_disk_write_size

bigint

Write size of disk cache.

Unit: byte.

disk_cache_remote_read_size

bigint

Remote read size of disk cache.

Unit: byte.

disk_cache_remote_read_time

bigint

Count of remote reads from disk cache.

Unit: times.

obs_info

-

text

OBS information.

vfs_scan_bytes

bigint

Bytes scanned by the OBS v file system.

Unit: byte.

vfs_remote_read_bytes

bigint

Bytes remotely read by the OBS v file system.

Unit: byte.

preload_submit_time

bigint

Commit time of pre-loading.

Unit: μs.

preload_wait_time

bigint

Wait time of pre-loading.

Unit: μs.

preload_wait_count

bigint

Count of pre-loading waits.

Unit: times.

disk_cache_load_time

bigint

Local load time of disk cache.

Unit: μs.

disk_cache_conflict_count

bigint

Hash collision count of disk cache blocks.

Unit: times.

disk_cache_error_count

bigint

Error count of disk cache.

Unit: times.

disk_cache_error_code

bigint

Error code of disk cache.

obs_io_req_avg_rtt

bigint

Average round-trip time of OBS I/O requests.

Unit: μs.

obs_io_req_avg_latency

bigint

Average latency of OBS I/O requests.

Unit: μs.

obs_io_req_latency_gt_1s

bigint

Count of OBS I/O request delays exceeding 1s.

Unit: times.

obs_io_req_latency_gt_10s

bigint

Count of OBS I/O request delays exceeding 10s.

Unit: times.

obs_io_req_count

bigint

Number of OBS I/O requests.

Unit: times.

obs_io_req_count

bigint

Number of OBS I/O request retries.

Unit: times.

obs_io_req_rate_limit_count

bigint

Rate limit count of OBS I/O requests.

Unit: times.

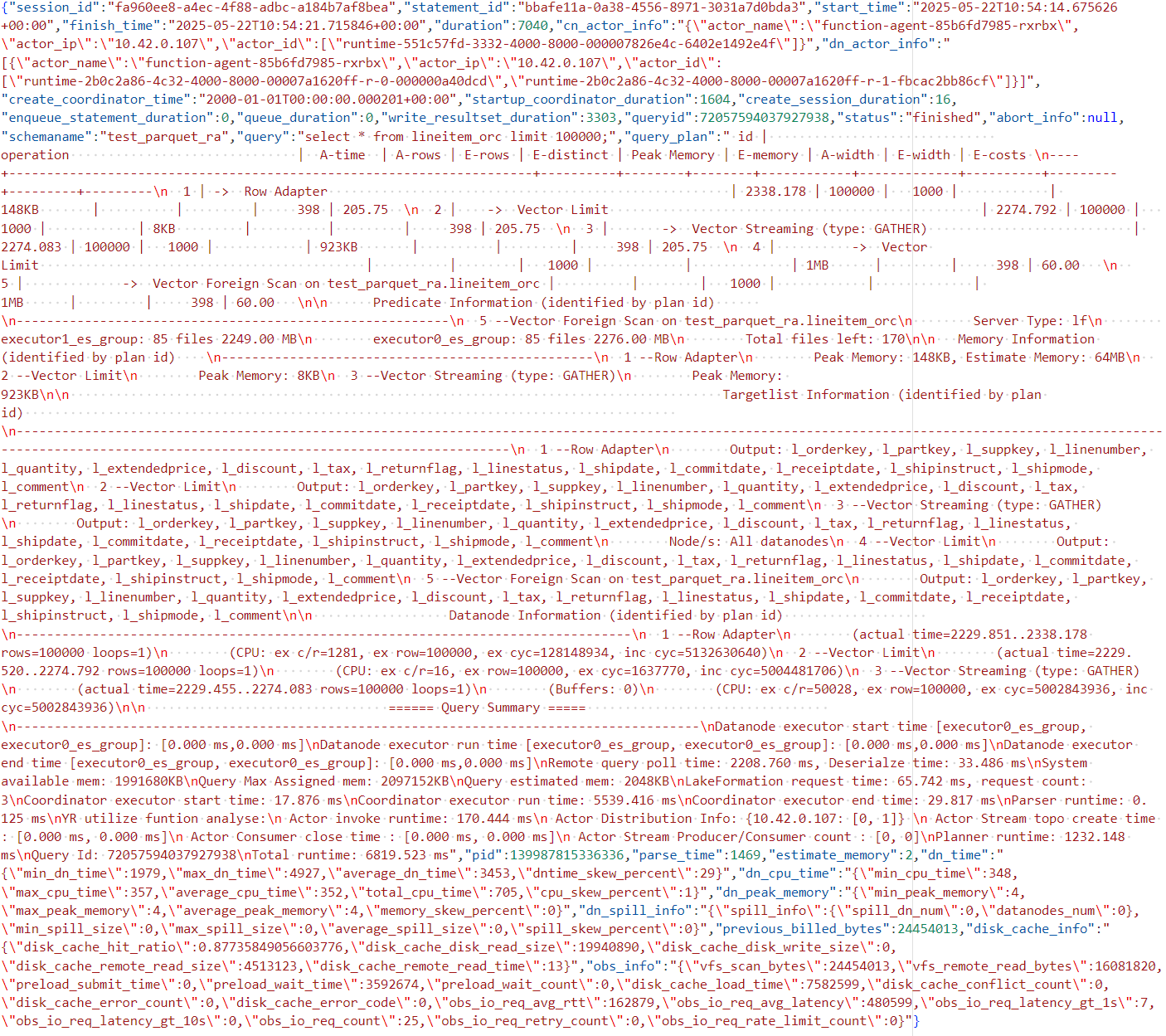

Current SQL monitoring data is stored in the OBS bucket of the result set, in the same directory as the result set folder. It can be accessed through the OBS service on the Huawei Cloud website. Based on the path of the current query's result set, locate the corresponding SQL monitoring data file in the same directory and download it for viewing. Upon opening the SQL monitoring data file, the following information is displayed:
