Configuring Power BI to Connect to DLI Using Kyuubi for Data Query and Analysis

Procedure

Figure 1 Process

• Step 1: Install and Connect Kyuubi to DLI: Install and configure Kyuubi to ensure that Kyuubi can connect to DLI.
• Step 2: Connect ODBC to Kyuubi: Install the ODBC driver and connect the driver to the Kyuubi server.
• Step 3: Connect Power BI to Kyuubi Using ODBC: Create a data connection in the BI tool, use ODBC as the data source, and connect to Kyuubi through ODBC.

Step 1: Install and Connect Kyuubi to DLI

To access Kyuubi from an external network, ensure that an EIP is bound to the ECS and ports 10009 and 3309 are enabled in the inbound rules of the security group.

1. Install JDK.

   Install JDK in your development environment before you can install and use Kyuubi.

   Java SDKs require JDK 1.8 or later. To ensure compatibility with future versions, you are advised to use version 1.8.

   1. Download the JDK.

      Download the JDK 1.8 installation package from Oracle official website and install it.

      In this example, jdk-8u261-linux-x64.tar.gz is used.

   2. Upload the JDK package to the corresponding directory of the Linux server and run the extraction command. In this example, the package is uploaded to /usr/local.

      sudo tar -xzf jdk-8u261-linux-x64.tar.gz -C /usr/local/

   3. Configure environment variables.

      Add the following content to the .bashrc or .profile file:

      export JAVA_HOME=/usr/local/jdk-1.8.0_261
      export PATH=$PATH:$JAVA_HOME/bin

   4. Apply the environment variables.

      source ~/.bashrc

   5. Run java -version to check whether the installation is successful. If the version number is displayed in the command output, the Java environment is successfully installed.

      java version "1.8.0_261"
      Java(TM) SE Runtime Environment (build 1.8.0_261-b12)
      Java HotSpot(TM) 64-Bit Server VM (build 25.261-b12, mixed mode)

2. Install Kyuubi.
   1. Download the Kyuubi installation package. Refer to Deploying Kyuubi to learn more how to install Kyuubi.
   2. Extract the downloaded package.

      tar -xzf kyuubi-{version}-bin.tar.gz

   3. (Optional) Configure environment variables.

      Add the bin directory of Kyuubi to PATH environment variables to ensure that Kyuubi scripts can be called at any location.

3. Connect Kyuubi to DLI.
   1. Add the DLI driver to the root directory of Kyuubi.

      Place the driver in Kyuubi's root directory /externals/engines/jdbc.

      Ensure that the user group and permissions of the plug-in are the same as those of other JAR files.

   2. Modify the Kyuubi configuration file.

      cd $KYUUBI_HOME/confvi kyuubi-defaults.conf

      Table 1 describes the parameters.

      Table 1 Kyuubi parameters

      Parameter	Description	Mandatory	Example Value
      kyuubi.engine.type	JDBC service type. Set it to dli.	Yes	jdbc
      kyuubi.engine.jdbc.type	Engine type. Set it to dli.	Yes	dli
      kyuubi.engine.jdbc.driver.class	Name of the driver class used to connect JDBC. Set it to com.huawei.dli.jdbc.DliDriver.	Yes	com.huawei.dli.jdbc.DliDriver
      kyuubi.engine.jdbc.connection.url	URL used to connect JDBC. Format: jdbc:dli://{dliendpoint}/{projectId}.	Yes	jdbc:dli://{dliendpoint} /{projectId}
      kyuubi.engine.jdbc.session.initialize.sql	Initialization SQL statements executed when a JDBC session is established.	No	select 1 If select 1 is displayed on the DLI management console, the initialization is successful.
      kyuubi.frontend.protocols	Frontend protocol supported by Kyuubi. Kyuubi supports various frontend protocols, allowing you to interact with Kyuubi through different APIs.	Yes	mysql thrift_binary
      kyuubi.engine.dli.schema.show.name	How the Kyuubi engine shows the schema name of data source APIs when you run show schemas or show databases. true: The DLI name is included as the prefix when the schema name is shown. false: The DLI name is not included when the schema name is shown. For example, if it is set to true and the DLI name is hive, the output is in the hive.default format when you run show schemas. If it is set to false, the output is in the default format.	No	true false
      kyuubi.engine.dli.jdbc.connection.region	Region name.	Yes	regionname=ap-southeast-2
      kyuubi.engine.dli.jdbc.connection.queue	DLI queue name.	Yes	dli_test
      kyuubi.engine.dli.jdbc.connection.database	Default database name used when the Kyuubi engine connects to the DLI data source through JDBC.	Yes	tpch
      kyuubi.engine.dli.jdbc.connection.ak	AK that acts as the authentication key. Set it if authenticationmode is aksk.	Yes	accesskey=your-access-key
      kyuubi.engine.dli.jdbc.connection.sk	Region name. Set it if authenticationmode is aksk.	Yes	secretkey=your-secret-key
      kyuubi.engine.dli.jdbc.connection.project	ID of the project where DLI resources are.	Yes	0b33ea2a7e0010802fe4c009bb05076d
      kyuubi.engine.dli.sql.limit.time.sec	Execution duration limit of a SQL query. The default value is 600 seconds.	No	300
      kyuubi.engine.dli.result.line.num.limit	Maximum number of data records returned for a SQL query. By default, 100,000 data records are returned. Setting it to -1 means that the number of returned data records is not limited.	Yes	50000
      kyuubi.engine.dli.small.file.merge	Whether to enable automatic small file merging. The default value is false, indicating that the function is disabled. true: Enable false: Disable	Yes	true
      kyuubi.engine.dli.bi.type	BI tool type. The options are fine, grafana, superset, tableau, power, dbt, and yongHong.	Yes	fine
      kyuubi.engine.dli.boolean.type.to.int	Whether DLI's Boolean data is returned as 1/0 or true/false. If the BI tool type is grafana, set this parameter to true. true: returned as 1/0 (1: true; 0: false) false: returned as true/false. The default value is false.	No	false
      kyuubi.engine.dli.set.conf.transform.to.annotation	Allows you to set set spark in SQL statements. Set it to true for Power BI, FineBI, Superset, and DBT.	No	true
      kyuubi.engine.dli.set.conf.sql.suffix	Allows you to set set spark at the end of SQL statements. Set it to true for Power BI and DBT.	No	true
      kyuubi.engine.dli.result.cache.enable	Whether to enable database table data caching. Once enabled, database table data is automatically cached. The default value is true. true: Enable false: Disable	No	true
      kyuubi.engine.dli.cache.limit.line.num	Maximum number of data records that can be cached. By default, 100,000 data records are cached. Setting it to -1 means that the number of cached data records is not limited.	No	1000
      kyuubi.engine.dli.cache.time.sec	Cache time. The default value is 1800 seconds.	No	1800
      kyuubi.operation.incremental.collect	Kyuubi pre-loads select result data into the cache to accelerate data reading. You are advised to disable this function to avoid memory OOM issues when dealing with large volumes of data.	No	false Setting it to false indicates disabling preloading.
      kyuubi.engine.jdbc.memory	Memory of the JDBC engine process. The default value is 1g. You are advised to set it to at least 5g to increase memory for the JDBC engine process.	No	5g

   3. Quickly start Kyuubi.

      Go to the root directory /bin of the ECS and run the following command to start Kyuubi:

      cd /bin
      ./kyuubi start  restart

      Once the start is successful, run SQL statements to check whether the connection between Kyuubi and DLI is normal.

4. (Optional) Configure the hosts file to speed up access to Kyuubi.

   To make access to Kyuubi faster, you are advised to add the Kyuubi host IP address to the /etc/hosts file on the host.

   1. Run ifconfig to check the IP address of the host.
      Figure 2 Checking the host IP address

   2. Add the IP address to the /etc/hosts file.
      Figure 3 Adding the host IP address to the /etc/hosts file


Step 2: Connect ODBC to Kyuubi

1. Install the ODBC driver.

   Install the ODBC driver on the local host based on the database type. In this example, the Hive database is used.

   • Cloudera Hive ODBC. Version 2.5.12 is recommended.
   • Microsoft Hive ODBC. Version 2.6.12.1012 is recommended.

2. Connect ODBC to Kyuubi.
   1. In Windows, click Control Panel, double-click Administrative Tools, and double-click Data Sources (ODBC).
   2. Configure an ODBC data source.
      1. Click User DSN.
      2. Click Add.
      3. Select Hive ODBC Driver and click OK.

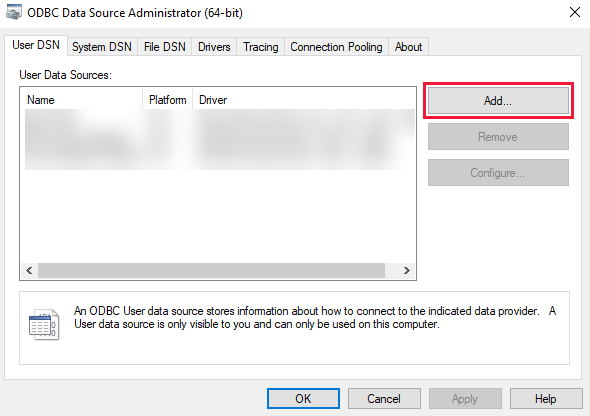

      Figure 4 Creating an ODBC data source connection

   3. In the dialog box that appears, enter information about the Kyuubi server.
      • Database: Enter the DLI database name.
      • Host(s): Enter the EIP of the Kyuubi server.
      • Port: listening port of Kyuubi. The Hive Thrift protocol is used. The default port is 10009.
      • User Name and Password: Configure the username and password of the Kyuubi server as required.

      Set other advanced options and save the settings.

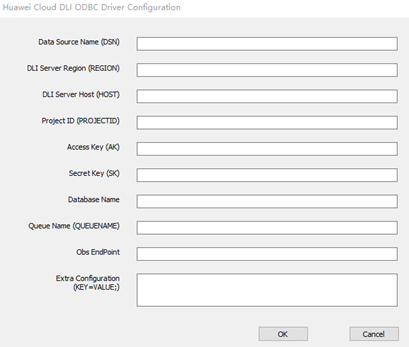

      Figure 5 ODBC data source connection parameters

   4. Click Test to check whether the data source connection is successful. If successful, click OK to save the connection.

Step 3: Connect Power BI to Kyuubi Using ODBC

1. Click and install Power BI. Download the Power BI installation package.
2. Start Power BI Desktop.
3. On the Home tab, click Get data.
4. Click More... to see other types of data sources available.
5. Select ODBC from the list as the data source type and click Connect.
6. In the ODBC Driver Manager window that appears, select the ODBC data source configured in Step 2: Connect ODBC to Kyuubi and click OK.

   Power BI connects to Kyuubi using ODBC and allows you to preview and select tables and views in the database.



   When previewing database tables, select limit. Otherwise, all partitioned tables are scanned.

Common Operations: Setting SQL Job Parameters

Select a configuration method based on the type of the installed ODBC driver.

• Use the Cloudera Hive ODBC (v2.5.12) driver.
  You only need to add annotation parameters to the end of SQL statements.

  -- @set Parameter
  Example:
  -- @set dli.sql.current.database=tpch
  -- @set dli.sql.shuffle.partitions=100

• Use the Microsoft Hive ODBC (v2.6.12.1012) driver.
  1. Make sure that the following parameters are enabled in the /conf/kyuubi-defaults.conf file of Kyuubi:

     kyuubi.engine.dli.set.conf.transform.to.annotation=true
     kyuubi.engine.dli.set.conf.sql.suffix=true

  2. Add annotation parameters to the end of SQL statements.

     set Parameter
     Example:
     set dli.sql.current.database=tpch
     set dli.sql.shuffle.partitions=100

The execution result in the SQL Editor of DLI is as follows:

Figure 6 Viewing the configured parameters in the SQL Editor of DLI
