Using the AOM Dashboard to Monitor CCI 2.0 Metrics

AOM can display multiple metrics on the same screen in a visualized manner. You can add key resource metrics to the dashboard and monitor them in real time.

Procedure

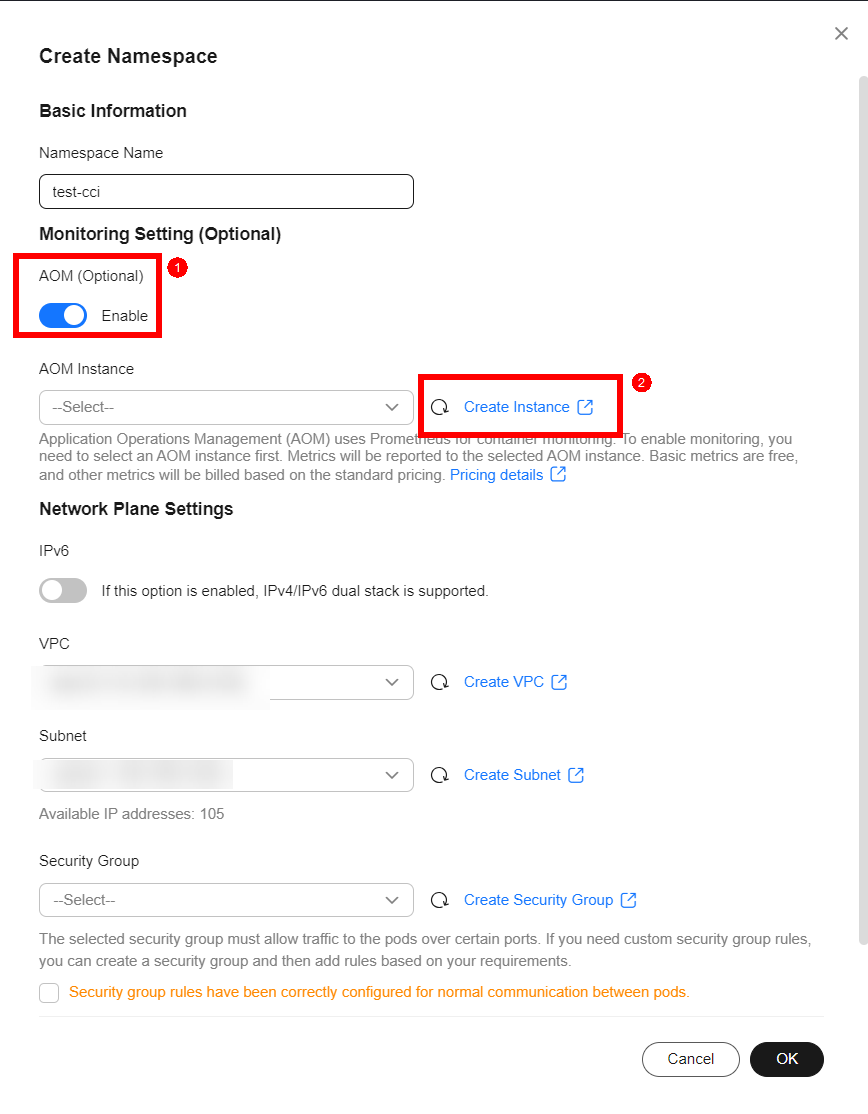

  1. On the CCI 2.0 console, enable AOM when creating or modifying a namespace.
  2. Select an AOM instance or click Create Instance. If you do not need to create an instance, go to 3.

    1. Go to the AOM 2.0 page and create an instance.

    1. In the navigation pane on the left, choose Metric Browsing > Prometheus Monitoring. On the displayed page, click Add Prometheus Instance.
    2. Set the instance name, enterprise project, and instance type.

    3. Click OK.

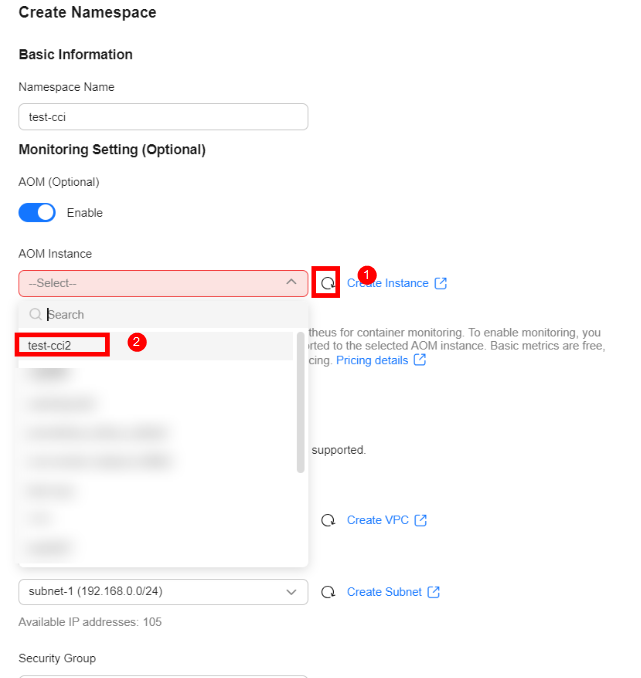

  1. Switch back to the page for creating or modifying a namespace on the CCI 2.0 console, click Refresh, and select an AOM instance.

  2. Configure other parameters and click OK.
  3. Go to the AOM 2.0 console. In the navigation pane, choose Dashboard. On the displayed page, click Add Dashboard.

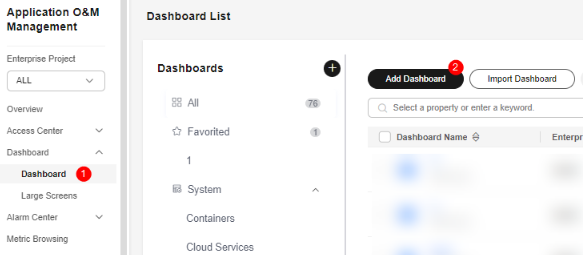

    Figure 1 Adding a dashboard

  4. Enter the dashboard name, select an enterprise project and group type, and click OK.

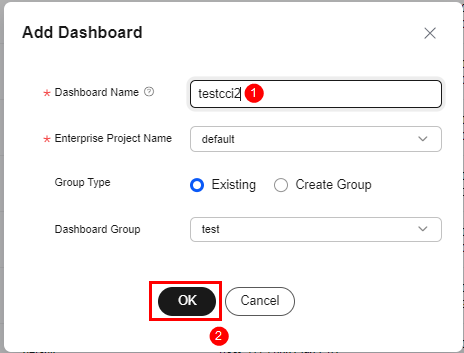

    Figure 2 Configuring a dashboard

  5. Click the name of the created dashboard to go to the details page.
  6. Click Add Chart, enter the title, select Prometheus statement, add a Prometheus statement, and click Save. For details about CCI 2.0 dashboard metrics, see Dashboard Metrics.
  7. View the metric data on the AOM 2.0 dashboard.

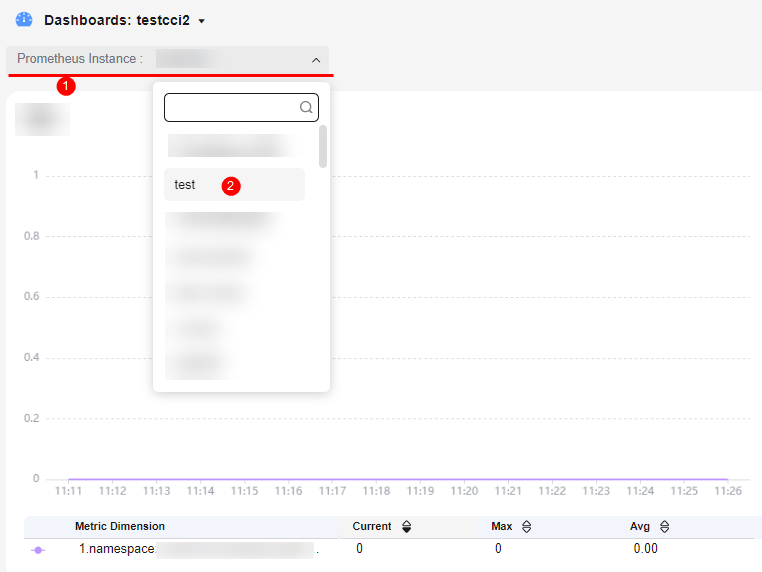

    Figure 3 Metric data

Dashboard Metrics

Dimension

Category

Metric Name

Metric Description

Deployment

vCPU metrics

vCPU Usage

vCPU usage

Used vCPUs

Used vCPUs

Memory metrics

Memory Usage

Memory usage

Used Memory

Used memory

Network metrics

Network Rate

Network rate

Packet Loss

Network packet loss rate

Pod

vCPU metrics

vCPU Usage

vCPU usage

Used vCPUs

Used vCPUs

Memory metrics

Memory Usage

Memory usage

Used Memory

Used memory

Network metrics

Network Rate

Network rate

Container

vCPU metric

vCPU Usage

vCPU usage

Memory metric

Memory Usage

Memory usage
