Calling a Workflow

Function

This API allows you to call the API of a created workflow and input a question to obtain the workflow execution result.

URI

POST /v1/{project_id}/workflows/{workflow_id}/conversations/{conversation_id}

For details about how to obtain the URI, see Request URI.

Table 1 URI parameters

Parameter

Mandatory

Type

Description

project_id

Yes

String

Project ID. For details about how to obtain a project ID, see Obtaining the Project ID.

workflow_id

Yes

String

Workflow ID. For details about how to obtain the workflow ID, perform the following steps:

On the Agent App Dev page, choose Workstation > Workflow in the navigation pane on the left. Locate the target workflow, click , and select Replication ID.

conversation_id

Yes

String

Conversation ID, which uniquely identifies a conversation. The conversation ID can be set to any value in the standard UUID format.

Request Parameters

Table 2 Request header parameters

Parameter

Mandatory

Type

Description

X-Auth-Token

Yes

String

User token.

Used to obtain the permission required to call APIs. The token is the value of X-Subject-Token in the response header in Authentication.

Content-Type

Yes

String

MIME type of the request body. The value is application/json.

stream

No

Boolean

Whether to enable streaming calling.

  • true: Enable
  • false: Disable
Table 3 Request body parameters

Parameter

Mandatory

Type

Description

inputs

Yes

Map<String, Object>

User's question, which is used as the input to the workflow and corresponds to the WORKFLOW_STARTED parameter of the workflow. The default field query is entered by the user.

plugin_configs

No

List<PluginConfig>

Plug-in configurations. When a user-defined plug-in node is configured in a workflow, authentication information may be required. For details about the structure, see Table 4.

Table 4 PluginConfig parameters

Parameter

Mandatory

Type

Description

plugin_id

Yes

String

Plug-in ID. To obtain the ID, perform the following steps:

On the Agent App Dev page, choose Workstation > Plugin in the navigation pane. Locate the target plug-in, click , and select Replication ID.

config

Yes

Map<String, String>

Plug-in configurations.

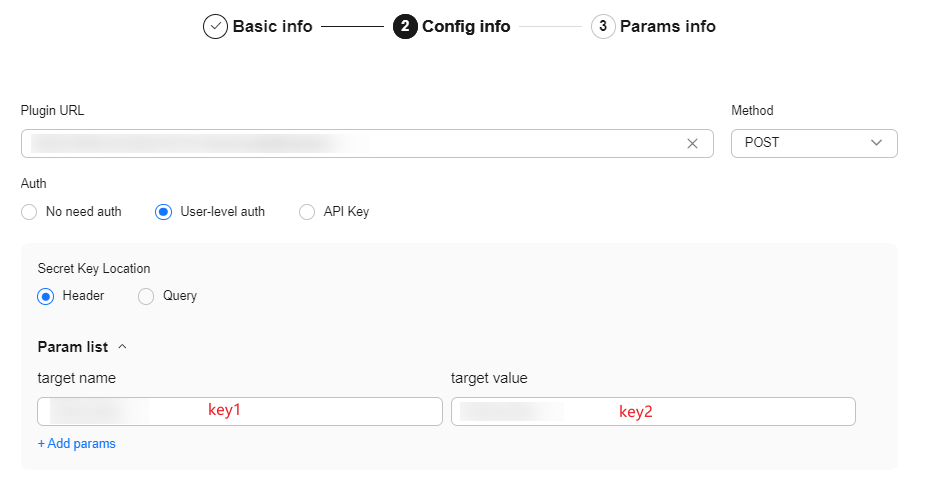

When the workflow is associated with a plug-in node and the plug-in requires user-level authentication, you need to configure the authentication information. For example, you can set config to {"key2": "value"} for the following plug-in.

In other cases, this parameter does not need to be set. Specify an empty array for plugin_configs.

Response Parameters

Non-streaming (with stream set to false in the header)

Status code: 200

Table 5 Data units output in non-streaming mode

Parameter

Type

Description

outputs

Map<String, Object>

Final output of the workflow. Multiple parameters are supported.

NOTE:

The following is an example of outputs:

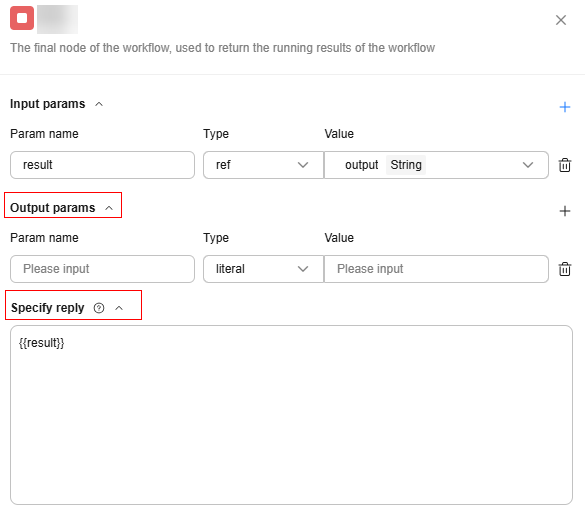

  • The responseContent parameter is available by default. The value is the Specify reply content of the workflow's end node.
  • You can customize parameters in the Output params module of the workflow's end node. Customized parameters are displayed in the user_fields parameter.
"outputs":{"user_fields":{"aaa":"1","vvv":[{"role":"user","content":"1"}]},"responseContent":" Hello! \uD83D\uDE0A You entered 1. Is there anything I can help you with? If you have any specific questions or requirements, feel free to let me know!"}

messages

List<Message>

Replies of the workflow assistant, such as the messages returned in the questioner node. For details, see Table 6.

status

Map<String, Object>

Status, including the status code and description.

start_time

Long

Start time.

end_time

Long

End time.

Table 6 Message

Parameter

Type

Description

role

String

Conversation role, which can be user or assistant

content

String

Conversation content

Streaming (with stream set to true or not specified in the header)

Status code: 200

Table 7 Data units output in streaming mode

Parameter

Type

Description

data

String

If stream is set to true, workflow execution messages will be returned in streaming mode. The generated text is returned incrementally. Each data field contains a part of the generated text until all data fields are returned.

Table 8 Data units output in streaming mode

Parameter

Type

Description

event

String

Data unit type. The options are as follows:

  • workflow_started: workflow start event, indicating that the workflow starts running.
  • workflow_finished: workflow end event, indicating that the workflow ends.
  • message: message event, indicating the message returned in streaming mode during workflow execution.
  • error: error event, indicating the workflow execution error information.
  • end: end event, indicating the request ends.

data

Object

Message block content, which varies depending on the event value.

Table 9 Data unit of the workflow_started event

Parameter

Type

Description

start_time

Long

Workflow start time.

Table 10 Data unit of the workflow_finished event

Parameter

Type

Description

start_time

Long

Workflow start time.

end_time

Long

Workflow end time.

outputs

Map<String, Object>

Final output of the workflow. Multiple parameters are supported.

NOTE:

The following is an example of outputs:

  • The responseContent parameter is available by default. The value is the Specify reply content of the workflow's end node.
  • You can customize parameters in the Output params module of the workflow's end node. Customized parameters are displayed in the user_fields parameter.
"outputs":{"user_fields":{"aaa":"1","vvv":[{"role":"user","content":"1"}]},"responseContent":" Hello! \uD83D\uDE0A You entered 1. Is there anything I can help you with? If you have any specific questions or requirements, feel free to let me know!"}

status

Map<String, Object>

Status, including the status code and description.

Table 11 Data unit of the message event

Parameter

Type

Description

text

String

Message block of the workflow output

index

Integer

Index of a message block

node_id

String

Node ID

node_type

String

Node type

node_name

String

Node name

Table 12 Data unit of the error event

Parameter

Type

Description

code

String

Workflow execution error code

message

String

Workflow execution error message

node_id

String

Node ID

node_type

String

Node type

node_name

String

Node name

Example Request

POST https://{endpoint}/v1/{project_id}/agent-run/workflows/{workflow_id}/conversations/{conversation_id}

Request Header:
Content-Type: application/json
X-Auth-Token: MIINRwYJKoZIhvcNAQcCoIINODCCDTQCAQExDTALBglghkgBZQMEAgEwgguVBgkqhkiG...
stream: true
Request Body:
{
  "inputs": {
    "query": "Hello"
  },
  "plugin_configs": [
    {
      "plugin_id": "xxxxxxxxx",
      "config": {
        "key": "value"
      }
    }
  ]
}

Example Response

Non-streaming (with stream set to false in the header)

Messages returned in the input node
{
    "conversation_id": "2c90493f-803d-431d-a197-57543d414317",
    "messages": [
        {
            "role": "assistant",
"content": "{\"inputs\": [{\"actualType\": \"string\", \"sourceType\": \"null\", \"description\": \"name\", \"name\": \"name\", \"type\": \"string\", \"required\": true}]}"
            "nodeId": "node_1745928389632",
            "nodeType": "Input",
"nodeName": " Input"
        }

    ],
    "status": {
        "code": 3,
        "desc": "waiting"
    },
    "start_time": 1734336269313,
    "end_time": 1734336270908
}

Messages returned in the questioner node

{
    "conversation_id": "f9a5540f-0c92-4f28-bd6e-f96ce04f5cc81",
    "messages": [
        {
            "role": "assistant",
"content": "Please provide your name and age.",
            "nodeId": "node_1745929628452",
            "nodeType": "Questioner",
"nodeName": "Questioner"
        }
    ],
    "status": {
        "code": 3,
        "desc": "waiting"
    },
    "start_time": 1745929778250,
    "end_time": 1745929779951
}

Messages returned in the end node

{
    "conversation_id": "2c90493f-803d-431d-a197-57543d414317",
    "outputs": {
        "responseContent": "Hello. How can I help you?"
    },
    "messages": [],
    "status": {
        "code": 1,
        "desc": "succeeded"
    },
    "start_time": 1734337068533,
    "end_time": 1734337082545
}

Streaming (with stream set to true or not specified in the header)

Messages returned in the input node

data:{"event":"workflow_started","data":{"start_time":1745929087614}}

data:{"event":"message","data":{"text":"{\"inputs\":[{\"actualType\": \"string\", \"sourceType\": \"null\", \"description\": \"name\", \"name\": \"name\", \"type\": \"string\", \"required\": true}]}","index":0,"node_id":"node_1745928389632","node_type":"Input","node_name":"Input"}}

data:{"event":"message","data":{"text":"","node_id":"node_1745928389632","node_type":"Input","node_name":" Input","is_finished":true}}

data:{"event":"end"}

Messages returned in the questioner node

data:{"event":"workflow_started","data":{"start_time":1745929709955}}

data:{"event":"message","data":{"text":"Please provide your name and age.","index":0,"node_id":"node_1745929628452","node_type":"Questioner","node_name":"Questioner"}}

data:{"event":"message","data":{"text":"","node_id":"node_1745929628452","node_type":"Questioner","node_name":" Questioner","is_finished":true}}

data:{"event":"end"}

Messages returned in the end node

data:{"event":"workflow_started","data":{"start_time":1745929897770}}

data:{"event":"message","data":{"text":"","index":0,"node_id":"node_end","node_type":"End","node_name":" End"}}

data:{"event":"message","data":{"text":"Hello","index":1,"node_id":"node_end","node_type":"End","node_name":"End"}}

data:{"event":"message","data":{"text":"!","index":2,"node_id":"node_end","node_type":"End","node_name":"End"}}

data:{"event":"message","data":{"text":"What can I do for you?","index":3,"node_id":"node_end","node_type":"End","node_name":"End"}}

data:{"event":"message","data":{"text":"","node_id":"node_end","node_type":"End","node_name":" end","is_finished":true}}

data:{"event":"workflow_finished","data":{"status":{"code":1,"desc":"succeeded"},"outputs":{"responseContent":""Hello! Is there anything I can help you with?","start_time":1745929897770,"end_time":1745929898600}}

data:{"event":"end"}

Status Codes

For details, see Status Codes.

Error Codes

For details, see Error Codes.
