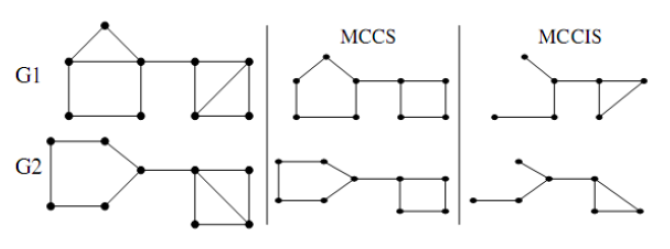

Maximum Common Connected Induced Subgraph (MCCIS)

Function

The MCCIS algorithm is suitable for calculating the similarity between two graphs.

similarity = 2*|E(mccis)| / (|E(G1) + |E(G2)|)

URI

POST /ges/v1.0/{project_id}/hyg/{graph_name}/algorithm
Table 1 URI parameters

Parameter

Mandatory

Type

Description

project_id

Yes

String

Project ID. For how to obtain the project ID, see Obtaining a Project ID.

graph_name

Yes

String

Graph name

Request Parameters

Table 2 Request body parameters

Parameter

Mandatory

Type

Description

algorithmName

Yes

String

Algorithm name

parameters

Yes

parameters object

Algorithm parameters

Table 3 parameters

Parameter

Mandatory

Type

Description

vertex_list_1

Yes

String

Sequence of vertices in subgraph 1. There can be up to 10,000 vertices.

vertex_list_2

Yes

String

Sequence of vertices in subgraph 2. There can be up to 10,000 vertices.

recursion_max_number

No

Integer

Maximum number of recursions. The value range is [10000, 100000000], with 1000000 as the default.

directed

No

Boolean

Whether an edge is directed. The options are true and false, with false as the default.

Response Parameters

Parameter

Type

Description

errorMessage

String

System prompt. If the execution succeeds, this parameter may be left blank. If the execution fails, this parameter is used to display the error message.

errorCode

String

System prompt. If the execution succeeds, this parameter may be left blank. If the execution fails, this parameter is used to display the error code.

jobId

String

ID of the algorithm execution job. This parameter is left blank if the request fails.

NOTE:

You can use the returned job ID to view the task execution status and obtain the algorithm return result. For details, see Querying Job Status on the Service Plane (1.0.0).

matches

List

Matched vertex pairs: [{vertex1: vertex2}, ...], where vertex is of the string type

  • Vertex 1 belongs to subgraph 1, and vertex 2 belongs to subgraph 2.

similarity

Double

Similarity between two graphs

Example Request

POST http://{SERVER_URL}/ges/v1.0/{project_id}/hyg/{graph_name}/algorithm
{
    "algorithmName": "mccis",
    "parameters": {
        "vertex_list_1": "46,47,48,49,38",
        "vertex_list_2": "50,51,52,42"
    }
}

SERVER_URL: Address for accessing a graph. For details about its value, see Using Service Plane APIs.

Example Response

Status code: 200

Example response for a successful request

Http Status Code: 200
{
"jobId": "4448c9fb-0b16-4a78-8d89-2a137c53454a001679122"
}

Status code: 400

Example response for a failed request

Http Status Code: 400
{
    "errorMessage": "Parameter error!",
    "errorCode": "GES.8005"
}

Status Codes

Return Value

Description

400 Bad Request

Request error.

401 Unauthorized

Authorization failed.

403 Forbidden

No operation permissions.

404 Not Found

No resources found.

500 Internal Server Error

Internal server error.

503 Service Unavailable

Service unavailable.
