Querying the Physical Server Information

Function

This API is used to query the physical server information.

Calling Method

For details, see Calling APIs.

URI

GET /v1/{project_id}/physicalservers/{id}

Table 1 URI parameters

Parameter

Mandatory

Type

Description

project_id

Yes

String

Definition

The project ID.

Constraints

N/A

Range

The project ID of the account

Default Value

N/A

id

Yes

String

Definition

Server ID.

Constraints

N/A

Range

N/A

Default Value

N/A

Request Parameters

Table 2 Request header parameter

Parameter

Mandatory

Type

Description

X-Auth-Token

Yes

String

Definition

Requests for calling an API can be authenticated using a token. If token-based authentication is used, this parameter is mandatory and must be set to a user token.

Constraints

N/A

Range

N/A

Default Value

N/A

Response Parameters

Status code: 200

Table 3 Response body parameters

Parameter

Type

Description

id

String

Definition

Server ID.

Constraints

N/A

Range

Its value is in UUID format.

Default Value

N/A

name

String

Definition

Name of a physical server, which is used as the hostname when an instance is created.

Constraints

N/A

Range

N/A

Default Value

N/A

project_id

String

Definition

The project ID.

Constraints

N/A

Range

The project ID of the account

Default Value

N/A

domain_id

String

Definition

domain ID

Constraints

N/A

Range

N/A

Default Value

N/A

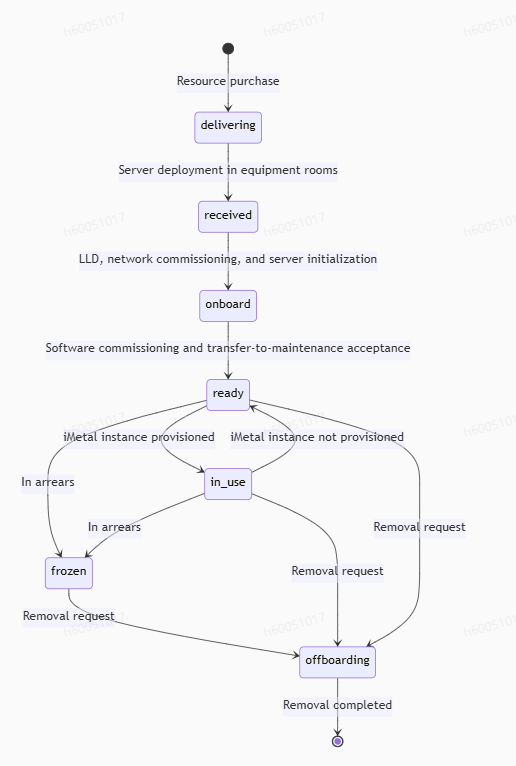

manage_state

String

Definition

Server management status.

Constraints

N/A

Value Range

  • onboard: The server is being provisioned. You can place an order and complete the LLD design.

  • ready: The delivery is complete, including hardware installation, network commissioning, server initialization, software commissioning, and transfer-to-maintenance acceptance.

  • in-use: The server is provisioned and in use.

  • frozen: Resources are frozen due to arrears.

  • offboarding: The server is being removed.

Default Value

N/A

power_state

String

Definition

Power supply status.

The power_state value changes according to different operations and events. The common status transition process is as follows:

  • Power-on process: off > powering-on > on

  • Power-off process: on > powering-off > off

  • Reboot process: on > rebooting > on

Constraints

N/A

Range

  • on: The power of a node is turned on, the hardware is powered on, and the OS is running or can be started normally. The node can execute computing tasks and provide services for upper-layer applications.

  • off: The power of a node is turned off, the power supply to the hardware is cut off, and all components are not working. The node cannot execute any computing tasks.

  • rebooting: A node is being rebooted, which means the node is powered off and then powered on. During this process, the hardware is initialized and the OS is started.

  • powering-on: When the node is being powered on, the hardware is powered on, but the OS may not be started.

  • powering-off: The node is being powered off. The OS performs some cleanup operations, such as saving data and stopping services, and then cuts off the power supply to the hardware.

Example scenario: After a user creates and activates a node in Ironic or powers on a node, the power_state value of the node changes to power on.

Example scenario: When a node is under maintenance or is no longer used, the administrator can power off the node. In this case, power_state is power off.

Example scenario: When an administrator uses the Ironic API to reboot a node, its power_state changes to rebooting during the process.

Example scenario: After an administrator sends a power-on instruction, the node enters the powering on state. The power_state value changes to power on when the OS has been started.

Example scenario: After an administrator sends a power-off instruction, the node enters the powering off state. The power_state value changes to off when the power supply is completely turned off.

Default Value

N/A

health_state

String

Definition

Hardware health status.

Constraints

N/A

Range

  • OK

  • Warning

  • Critical

  • Unknown

Default Value

N/A

onboard_time

String

Definition

Provisioning time.

Constraints

N/A

Range

The value is in RFC 3339 format, for example, 2025-04-22T12:03:18.50083+08:00.

Default Value

N/A

location

Location object

Definition

Location of the physical server.

Constraints

N/A

hardware_attributes

HardwareSummary object

Definition

Hardware overview information, including the server manufacturer, model, and serial number.

Constraints

N/A

tags

Array of Tag objects

Definition

Tag.

Constraints

N/A

error

ErrorStatus object

Definition

Error object returned upon a failure.

Constraints

N/A

Table 4 Location

Parameter

Type

Description

dc

String

Definition

Equipment room name.

Constraints

N/A

Range

Maximum length: 256 bytes. Only letters, digits, underscores (_), hyphens (-), and periods (.) are allowed.

Default Value

N/A

rack

String

Definition

Rack name.

Constraints

N/A

Range

Maximum length: 128 bytes. Only letters, digits, underscores (_), hyphens (-), and periods (.) are allowed. It cannot start with hyphens (-) or periods (.).

Default Value

N/A

unit

String

Definition

Rack unit (U)

Constraints

N/A

Range

Maximum length: 128 bytes

Default Value

N/A

Table 5 HardwareSummary

Parameter

Type

Description

sn

String

Definition

serial number

Constraints

N/A

Range

N/A

Default Value

N/A

manufacturer

String

Definition

Manufacturer.

Constraints

N/A

Range

N/A

Default Value

N/A

model

String

Definition

Model.

Constraints

N/A

Range

N/A

Default Value

N/A

main_board_manufacturer

String

Definition

Mainboard vendor.

Constraints

N/A

Range

N/A

Default Value

N/A

Table 6 Tag

Parameter

Type

Description

key

String

Definition

Tag key.

Constraints

N/A

Range

  • The value cannot be empty and cannot start or end with spaces. A maximum of 128 characters are supported.

  • The value can contain letters, digits, and spaces in UTF-8 format.

  • The value can contain the following special characters: _.:=+-@

  • The value cannot start with sys.

Default Value

N/A

value

String

Definition

Tag value.

Constraints

N/A

Range

  • The value can contain a maximum of 255 characters. It can be empty but cannot be the default.

  • The value can be letters, digits, and spaces in UTF-8 format.

  • The value can contain the following special characters: _.:/=+-@

Default Value

N/A

Table 7 ErrorStatus

Parameter

Type

Description

error_code

String

Definition

Error code.

Constraints

N/A

Range

N/A

Default Value

N/A

error_msg

String

Definition

Error message.

Constraints

N/A

Range

N/A

Default Value

N/A

error_type

String

Definition

Error type.

Constraints

N/A

Range

  • create_instance_error: Instance creation error

  • delete_instance_error: Instance deletion error

  • reinstall_error: OS reinstallation error

  • modify_ip_error: IP address change error

  • verify_server_error: Server verification error

  • delete_server_error: Server deletion exception

Default Value

N/A

Status code: 400

Table 8 Response body parameters

Parameter

Type

Description

error_code

String

Definition

Error code.

Constraints

N/A

Range

N/A

Default Value

N/A

error_msg

String

Definition

Error message.

Constraints

N/A

Range

N/A

Default Value

N/A

Status code: 401

Table 9 Response body parameters

Parameter

Type

Description

error_code

String

Definition

Error code.

Constraints

N/A

Range

N/A

Default Value

N/A

error_msg

String

Definition

Error message.

Constraints

N/A

Range

N/A

Default Value

N/A

Status code: 429

Table 10 Response body parameter

Parameter

Type

Description

-

String

-

Status code: 500

Table 11 Response body parameters

Parameter

Type

Description

error_code

String

Definition

Error code.

Constraints

N/A

Range

N/A

Default Value

N/A

error_msg

String

Definition

Error message.

Constraints

N/A

Range

N/A

Default Value

N/A

Example Request

Request for querying information about physical servers

GET https://{endpoint}/v1/{project_id}/physicalservers/{id}

Example Response

Status code: 200

Physical server information returned.

{
  "id" : "0197ee54-53de-78fe-94dd-a6684e4a85ee",
  "name" : "CloudDC-Jarvis-147",
  "project_id" : "e750c9499ffb4244add7398a0af4f215",
  "domain_id" : "aef171e13fe24458a819bb42870571d9",
  "manage_state" : "ready",
  "power_state" : "off",
  "health_state" : "OK",
  "onboard_time" : "2025-07-09T16:36:33.374276+08:00",
  "location" : {
    "dc" : "BBB",
    "rack" : "AAA",
    "unit" : "19"
  },
  "hardware_attributes" : {
    "sn" : "CloudDC-Jarvis-147",
    "manufacturer" : "Huawei",
    "model" : "NV602x1x99x3"
  },
  "tags" : [ {
    "key" : "chennantest",
    "value" : "1223"
  }, {
    "key" : "QQ",
    "value" : "QQ"
  } ],
  "ops_result" : "Uninstalling",
  "az_id" : "",
  "region_id" : "",
  "bmc_firmware_version" : ""
}

Status Codes

Status Code

Description

200

Physical server information returned.

400

Invalid request parameter.

401

The request is not authenticated.

429

The request is overloaded.

500

Internal server error.

Error Codes

For details, see Error Codes.
