Viewing a File System

You can search for file systems by file system name keyword and view their basic information.

Procedure

  1. Log in to the SFS console.
  2. In the file system list, view the file systems you have created. Table 1 describes the file system parameters.

    Table 1 Parameter description

    Parameter

    Description

    Name

    Name of the created file system

    AZ

    Availability zone where the file system is located

    Status

    Possible values are Available, Unavailable, Frozen, Creating, Deleting.

    Type

    File system type

    Protocol Type

    SFS Turbo file system protocol, which can be NFS or SMB

    Used Capacity (GB)

    File system space already used for data storage

    NOTE:

    This information is refreshed every 15 minutes.

    Maximum Capacity (GB)

    Maximum capacity of the file system

    Encrypted

    Encryption status of the file system. The value can be Yes or No.

    Enterprise Project

    Enterprise project to which the file system belongs

    Shared Path

    File system address

    Billing Mode

    Billing mode of a file system. The value can be Pay-per-use or Yearly/Monthly. The creation time is displayed for a pay-per-use file system, and the expiration time is displayed for a yearly/monthly file system.

    Operation

    Provides the Expand Capacity, View Metric, Change to Yearly/Monthly, Create Backup, Delete, Renew, and Unsubscribe buttons for an SFS Turbo file system.

  3. Click the name of a file system to view detailed information about the file system.

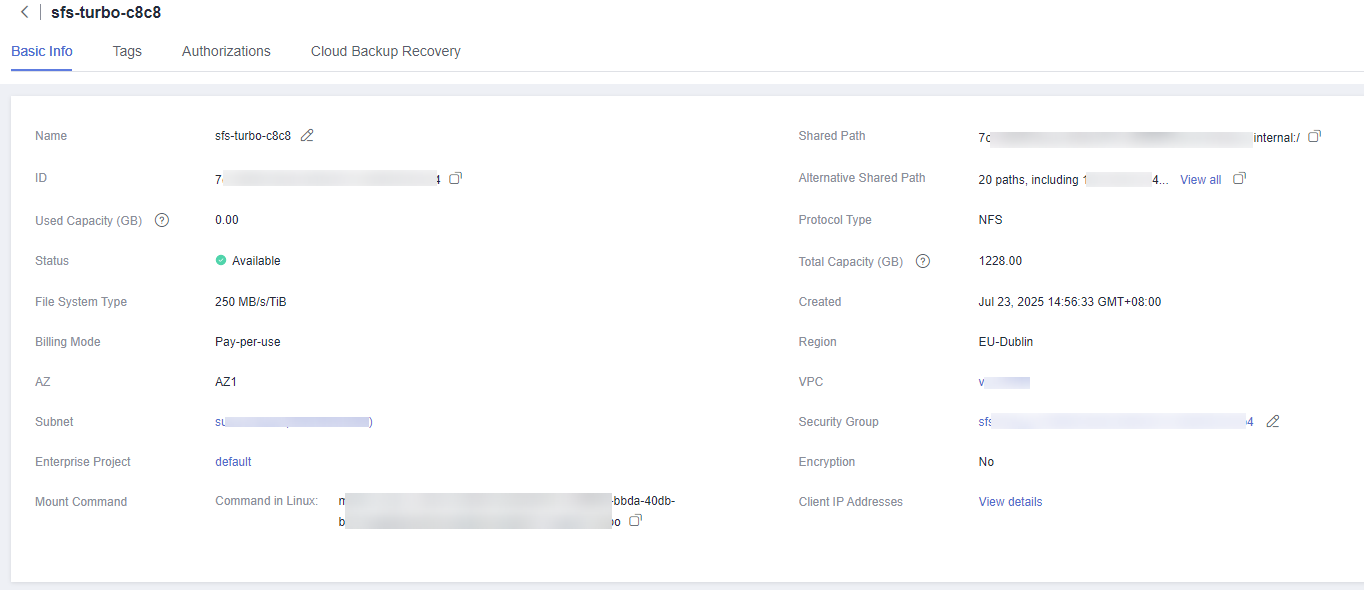

    Figure 1 Basic information of an SFS Turbo file system

  4. (Optional) Search for the specified file system by file system name.
