Viewing a Scenario Instance

You can manage all scenarios, view metric running statuses, query run logs, and handle issues on the O&M Management page.

GUI Description

The following figure shows the areas and buttons on the O&M page.

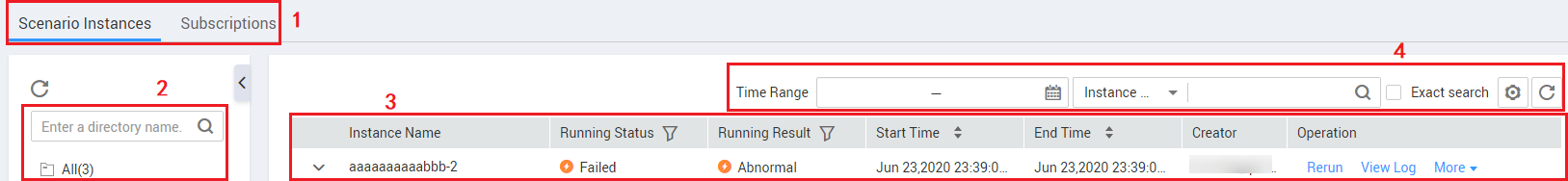

Figure 1 O&M Management page
Table 1 Entry

No.

Area

Description

1

Menu bar

The menu bar on the O&M Management page includes Scenario Instances and Subscriptions.

  • The Scenario Instances tab page lists all scenario instances that you have created.
  • The Subscriptions tab page lists all scenarios that you have subscribed. Notification Status is available only on the Subscriptions tab page. Notification Status indicates whether the running result of a scenario instance is subscribed to, for example, sending an alarm email.

2

Navigation bar

Contains the directories that store scenario instances.

You can store scenarios in different directories. The number next to each directory indicates the number of scenarios stored in that directory.

3

List of scenario instances

Displays the instance name, running status, and running result.

4

Search area
  • Displays scenario instances selectively. For example, you can display scenario instances for a specified time range.
  • Displays a list of instances according to the handler, creator, or instance name. Fuzzy search is supported.
Table 2 Scenario instance parameters

Parameter

Description

Running Status

Displays the running status of a scenario instance.

  • Successful: The instance is successfully executed.
  • Failed: The instance fails to run.
  • Running: The instance is running.

Running Result

Displays whether the scenario instance is running properly.

  • Normal: The instance stops normally and the running result meets the expectation.
  • Alarming: The instance stops normally, but the running result does not meet the expectation.
  • Abnormal: The instance stops unexpectedly.
  • --: The instance is running, but no running result is displayed.

Rerun

Allows you to run the scenario instance again.

View Log

Allows you to view the running details of the scenario instance.

More > Resolve Issue

Allows you to perform further processing on the scenario instance. You can Provide handling suggestions, Close the issue, or Transfer to others.

The above operations can be performed only when you are the handler of the instance.

More > View Processing Log

Allows you to view historical processing records.
