Updated on 2022-09-23 GMT+08:00

Managing a Notification

You can configure DLF to notify you of job success after it is performed.

Configuring a Notification

Before configuring a notification for a job:

  • Message notification has been enabled and a topic has been configured.
  • A job not in Not Activated status has been submitted.
  1. Log in to the DataArts Studio console. Locate an instance and click Access. On the displayed page, locate a workspace and click DataArts Factory.
  2. In the navigation pane on the DataArts Factory page, choose Monitoring > Manage Notification.

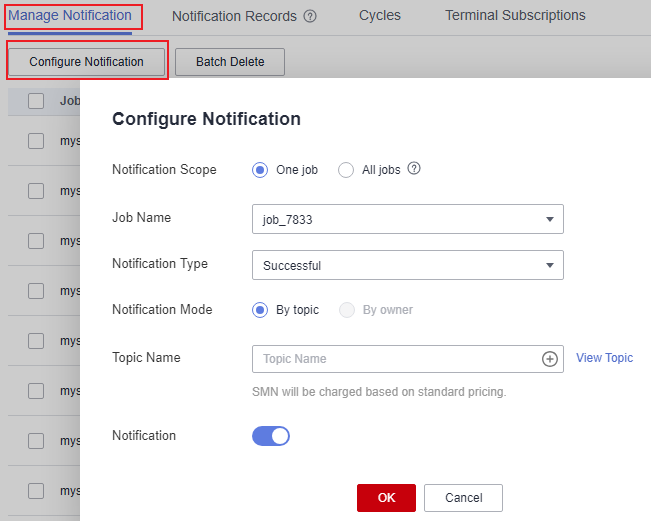

  3. On the Notification Management tab page, click Configure Notification. In the displayed dialog box, configure parameters. Table 1 describes the parameters.
    Table 1 Notification parameters

    Parameter

    Mandatory

    Description

    Notification Scope

    Yes

    Notification scope. Available options include:

    • One job: Notifications are sent for a single job.
    • All jobs: Notifications are sent for all jobs.

    Job Name

    Yes

    Name of the job.

    Notification Type

    Yes

    Type of the notification.

    • When Notification Scope is One job, available options for this parameter include:
      • Run abnormally/Fail: When a job cannot run normally or fail to run, a notification is sent to notify the user of the abnormality.
      • Run successfully: When a job runs successfully, a notification is sent to notify the user of the success.
      • Uncompleted: This function supports only the jobs scheduled by day. If the job execution time is later than the configured time by which the job has not finished, a notification is sent.
      • Busy resources: If resources are busy during job execution, a notification is sent.
    • When Notification Scope is All jobs, available options for this parameter include:
      • Run abnormally/Fail: When a job cannot run normally or fail to run, a notification is sent to notify the user of the abnormality.
      • Busy resources: If resources are busy during job execution, a notification is sent.
    NOTE:

    For a real-time job, a notification is allowed to be sent only when the real-time job is in the Run abnormally or Failed state. For a batch job, a notification can be sent no matter when the batch job is in the Run normally, Run abnormally, or Failed state.

    Topic Name

    Yes

    Select a notification topic.

    NOTE:

    Currently, only SMS, email, or HTTP are supported to subscribe to topics.

    Notification

    Yes

    Whether to enable the notification function. The function is enabled by default.

  4. Click OK.
    • The DataArts Factory module sends notifications through SMN. Using SMN may incur fees. For pricing details, contact the SMN support personnel.
    • Multiple message topics can be configured for a job. When the job is successfully executed or fails to be executed, notifications can be sent to multiple subscribers.

Editing a Notification

After a notification is created, you can modify the notification parameters as required.

  1. In the navigation pane on the DataArts Factory page, choose Monitoring > Manage Notification.
  2. Click the Notification Management tab.

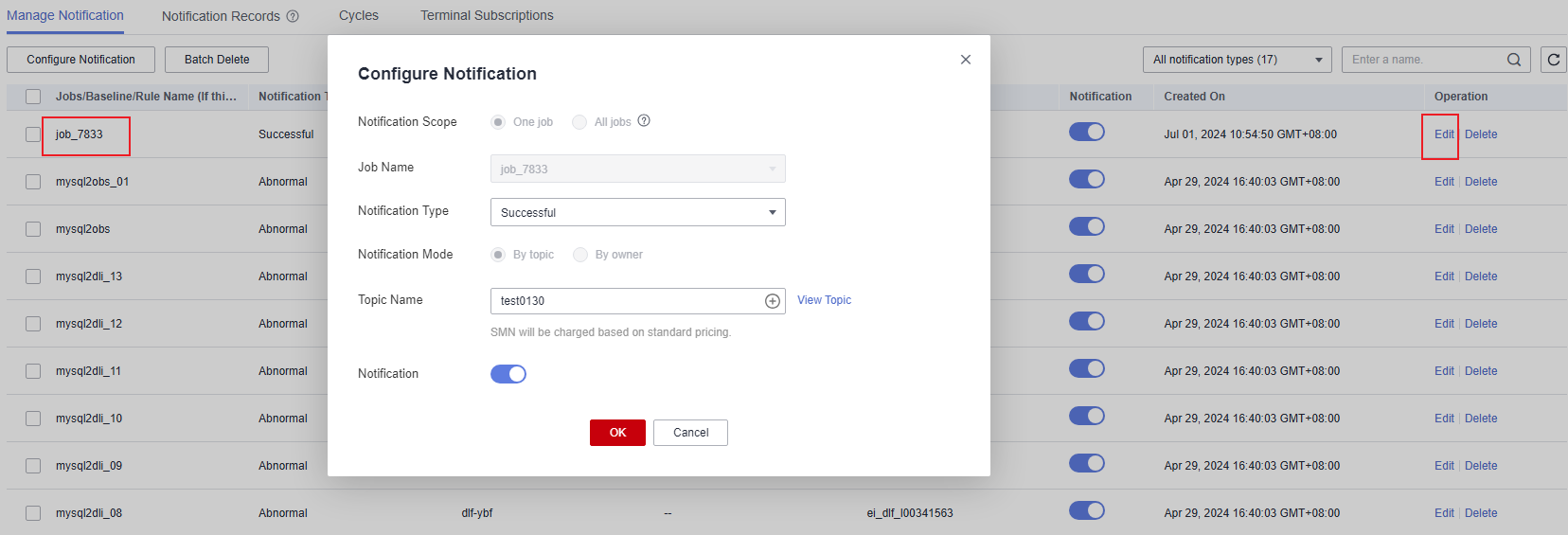

  3. In the Operation column of a notification, click Edit. In the displayed dialog box, edit notification parameters. Table 1 describes the notification parameters.
  4. Click Yes.

Disabling a Notification

You can disable the notification function on the Edit Notification page or in the notification list.

  1. In the navigation pane on the DataArts Factory page, choose Monitoring > Manage Notification.
  2. Click the Notification Management tab.

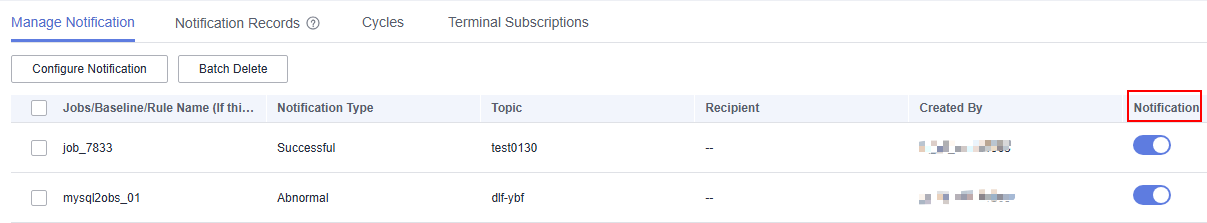

  3. In the Notification Function column, click . When it changes to , the notification function is disabled.

Viewing a Notification

You can view all notification information on the Notification Records tab page.

  1. In the navigation pane on the DataArts Factory page, choose Monitoring > Manage Notification.

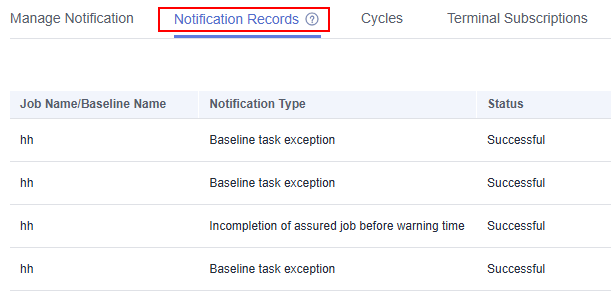

  2. Click the Notification Records tab.

Deleting a Notification

If you do not need to use a notification any more, perform the following operations to delete it:

  1. In the navigation pane on the DataArts Factory page, choose Monitoring > Manage Notification.
  2. Click the Notification Management tab.
  3. You can delete a notification in either of the following ways:

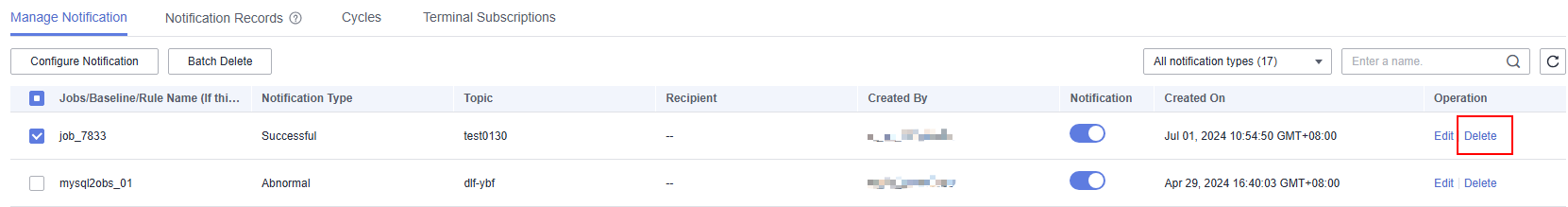

    • In the Operation column of a notification, click Delete.
    • Select the notifications to delete and click Batch Delete above the notification list.
  4. In the displayed dialog box, click OK.
