Creating Throttling Policies

Scenario

A throttling policy limits the maximum number of times that an API can be called within a specific period. Throttling policies can protect the backend service from getting overloaded. Currently, API throttling can limit the number of API calls by user, application, and time period.

To ensure the stability of services, you can create throttling policies to control the calls made to specified APIs. Throttling policies take effect for an API only if they are bound to the API.

An API can be bound to only one throttling policy in an environment, but each throttling policy can be bound to multiple APIs.

Prerequisites

The API to be bound has been published.

Creating a Throttling Policy

  1. On the DataArts Studio console, locate an instance and click Access. On the displayed page, locate a workspace and click DataArts DataService.
  1. In the left navigation pane, choose an edition, for example, Exclusive Edition. The Overview page is displayed.
  2. On the displayed page, choose Throttling Policies from the left navigation bar.
  3. On the displayed page, click Create. Set the parameters listed in Table 1.

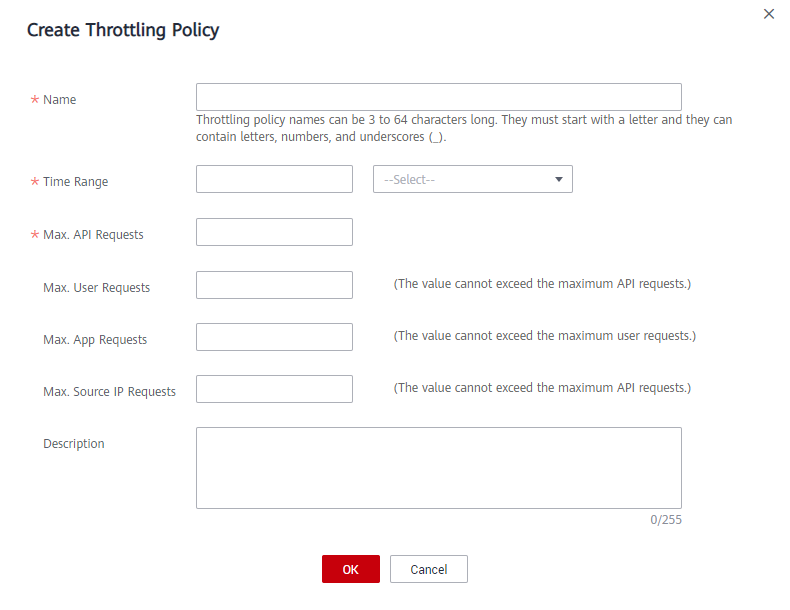

    Figure 1 Creating a throttling policy
    Table 1 Parameters

    Parameter

    Description

    Name

    The throttling policy name.

    Time Range

    The time duration for limiting the number of API calls

    • Used together with Max. API Requests to specify the total number of times an API can be called within a time period.
    • Used together with Max. User Requests to specify the number of times an API can be called by a user within a time period.
    • Used together with Max. App Requests to specify the total number of times an API can be called by an app within a time period.

    Max. API Requests

    The maximum number of times an API can be called within the specified time period.

    Used together with Time Range to specify the maximum number of times an API can be called within the period.

    Max. User Requests

    The maximum number of times an API can be called by a user within the specified period.

    • The value of this parameter must be less than that of Max. API Requests.
    • Used together with Time Range to specify the maximum number of times an API can be called by a user within the specified period.

    Max. App Requests

    The maximum number of times an application can be called by a user within the specified period.

    • The value of this parameter must be less than that of Max. User Requests.
    • Used together with Time Range to specify the maximum number of requests an app can make within the specified period.

    Description

    A description of the throttling policy to be created

  4. Click OK.

    After the throttling policy is created, it is listed in the throttling policy list. Bind the throttling policy to an API to limit the access traffic.

Binding a Throttling Policy to an API

  1. On the DataArts Studio console, locate an instance and click Access. On the displayed page, locate a workspace and click DataArts DataService.
  1. In the left navigation pane, choose an edition, for example, Exclusive Edition. The Overview page is displayed.
  2. Choose Throttling Policies from the left navigation bar.
  3. Bind a throttling policy to an API in either of the following ways:
    • Locate the throttling policy to be bound and click Associate with APIs.
    • Click the target policy name to go to its details page and click Associate with APIs on the List of Associated APIs tab page.
  4. Enter an API group and API name to search for the target API.
  5. Select the API and click OK.

    If a throttling policy is no longer needed, click Unbind on the List of Associated APIs tab page. To unbind multiple APIs at a time, select the APIs to be unbound and click Unbind. Up to 1000 APIs can be unbound at a time.

Deleting a Throttling Policy

You can delete a throttling policy if it is no longer needed.

  1. On the DataArts Studio console, locate an instance and click Access. On the displayed page, locate a workspace and click DataArts DataService.
  1. In the left navigation pane, choose an edition, for example, Exclusive Edition. The Overview page is displayed.
  2. On the displayed page, choose Throttling Policies from the left navigation bar.
  3. On the displayed page, locate the policy you want to unbind and click Delete in the Operation column.
    • Throttling policies bound to APIs cannot be deleted. Therefore, you need to unbind them from APIs before deleting them.
    • To delete multiple throttling policies at a time, select the policies, and click Delete. Up to 1000 throttling policies can be deleted at a time.
  4. Click Yes.
