Status Code Cache TTL

Scenarios

This function applies to the scenario where the origin server returns an abnormal status code. When the origin server is running properly, CDN caches an origin resource on PoPs based on cache rules you configure. When a user accesses the resource, origin pull will not be triggered. If the origin server responds abnormally and you do not want the origin server to respond to all requests, you can set the status code cache TTL to reduce the pressure on the origin server.

• Application: If image abc.jpg has been deleted from the origin server and is not cached on CDN PoPs, CDN pulls it for each request, but the origin server returns a 4xx status code each time. This increases the pressure on the origin server. In this case, if you configure the cache TTL for the status code 4xx on CDN, CDN PoPs will directly return the status code 4xx when users request the image, and origin pull is not required.

Precautions

• If a resource is not cached on CDN PoPs, the status code generated when a client requests the resource cannot be cached even if a cache TTL has been set for this status code.
• The status code cache TTL cannot be configured for domain names with special configurations.
• By default, CDN caches status codes 404, 500, 502, and 504 for 3 seconds and does not cache other status codes.
  • The header settings determine whether the 404 status code is cached by default. If the X-HTTP-Method-Override, X-HTTP-Method, or X-Method-Override header is carried, the 404 status code is not cached by default. If not, the 404 status code is cached for 3 seconds.
• When Query Parameters is set to Ignore all for a resource, and a status code (for example, 400) returned for a client request is cached, the status code (400 in this example) will be returned for all requests for the resource within the cache TTL.
• You can modify the cache TTL of the following status codes:
  • 4XX: 400, 401, 403, 404, 405, 407, 414, 416, and 451
  • 5XX: 500, 501, 502, 503, 504, 509, and 514
  • 3XX: 301 and 302

Procedure

1. Log in to Huawei Cloud console. Choose Service List > Content Delivery & Edge Computing > Content Delivery Network.

   The CDN console is displayed.

2. In the navigation pane, choose Domains.
3. In the domain list, click the target domain name or click Configure in the Operation column.
4. Click the Cache Settings tab.
5. Click Add under Status Code Cache TTL.

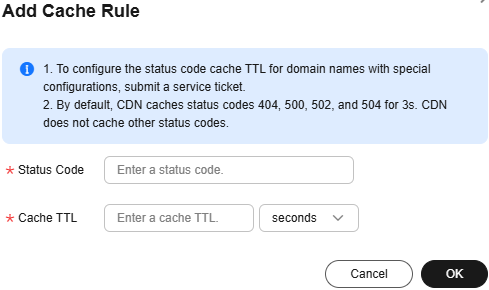

   Figure 1 Adding a status code cache TTL


   Table 1 Parameters

   Parameter	Description	Example
   Status Code	Status code to be cached.	404
   Cache TTL	Duration for caching the status codes on CDN PoPs. If it is set to 0, the status code is not cached. The value ranges from 0 to 365 days. NOTE: Status codes 3XX and 416 can be cached for 0 to 20 seconds.	3 days

6. Configure the parameters and click OK.

Example

Assume that you have configured the following status code cache rules for the domain name www.example.com.

Result: When a user accesses a resource that is not cached on a CDN PoP, the CDN PoP pulls the resources from the origin server. However, the origin server has deleted the resource and returns a status code 404. CDN transparently transmits the status code to the user and caches the status code on the CDN PoP. Within the cache TTL (30 days), when a user accesses the resource again, CDN directly returns the status code 404 to the user and does not need to pull content from the origin server, reducing the pressure on the origin server.
