Deployment Architecture

Database audit is deployed in out-of-path pattern. It supports audit of RDS databases and databases built on ECS and BMS on Huawei Cloud.

Figure 1 Database audit deployment architecture

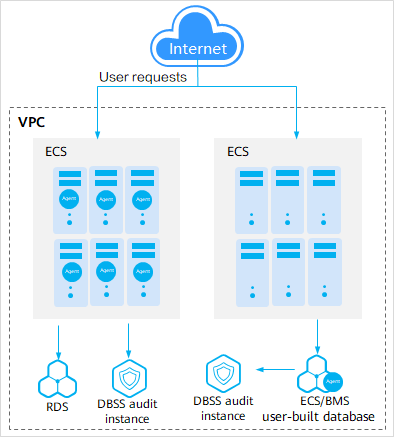

Figure 2 Network mode

Figure 3 Implementation

The agent deployment for database audit is as follows:

• For databases built on ECS or BMS, agents must be deployed on the database side.
• For relational databases, agents must be deployed on the application or proxy side.
