How Can I Obtain GPU Usage Through Code?
Run the shell or python command to obtain the GPU usage.
Using the shell Command

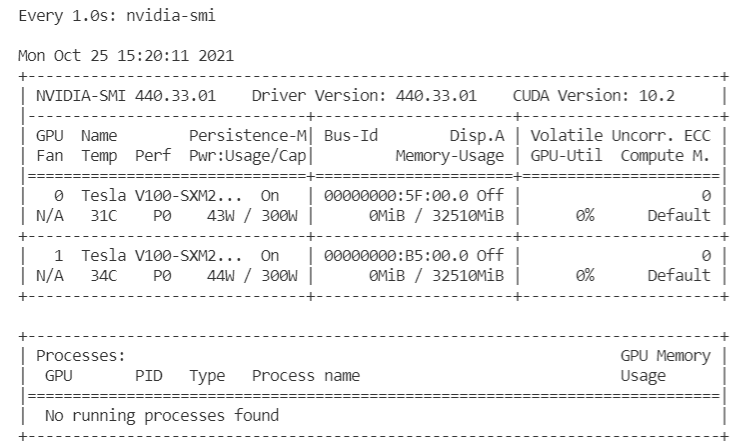

- Run the nvidia-smi command.
This operation relies on CUDA NVCC.
watch -n 1 nvidia-smi
- Run the gpustat command.
pip install gpustat
gpustat -cp -i
To stop the command execution, press Ctrl+C.
Using the python Command
- Run the nvidia-ml-py3 command (commonly used).
!pip install nvidia-ml-py3
import nvidia_smi nvidia_smi.nvmlInit() deviceCount = nvidia_smi.nvmlDeviceGetCount() for i in range(deviceCount): handle = nvidia_smi.nvmlDeviceGetHandleByIndex(i) util = nvidia_smi.nvmlDeviceGetUtilizationRates(handle) mem = nvidia_smi.nvmlDeviceGetMemoryInfo(handle) print(f"|Device {i}| Mem Free: {mem.free/1024**2:5.2f}MB / {mem.total/1024**2:5.2f}MB | gpu-util: {util.gpu:3.1%} | gpu-mem: {util.memory:3.1%} |")
- Run the nvidia_smi, wapper, and prettytable commands.

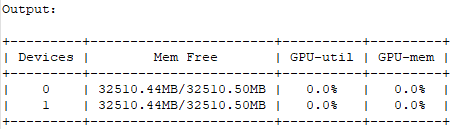

Use the decorator to obtain the GPU usage in real time during model training.
def gputil_decorator(func): def wrapper(*args, **kwargs): import nvidia_smi import prettytable as pt try: table = pt.PrettyTable(['Devices','Mem Free','GPU-util','GPU-mem']) nvidia_smi.nvmlInit() deviceCount = nvidia_smi.nvmlDeviceGetCount() for i in range(deviceCount): handle = nvidia_smi.nvmlDeviceGetHandleByIndex(i) res = nvidia_smi.nvmlDeviceGetUtilizationRates(handle) mem = nvidia_smi.nvmlDeviceGetMemoryInfo(handle) table.add_row([i, f"{mem.free/1024**2:5.2f}MB/{mem.total/1024**2:5.2f}MB", f"{res.gpu:3.1%}", f"{res.memory:3.1%}"]) except nvidia_smi.NVMLError as error: print(error) print(table) return func(*args, **kwargs) return wrapper
- Run the pynvml command.
Run nvidia-ml-py3 to directly obtain the nvml c-lib library, without using nvidia-smi. Therefore, this command is recommended.
from pynvml import * nvmlInit() handle = nvmlDeviceGetHandleByIndex(0) info = nvmlDeviceGetMemoryInfo(handle) print("Total memory:", info.total) print("Free memory:", info.free) print("Used memory:", info.used)
- Run the gputil command.
!pip install gputil
import GPUtil as GPU GPU.showUtilization()
import GPUtil as GPU GPUs = GPU.getGPUs() for gpu in GPUs: print("GPU RAM Free: {0:.0f}MB | Used: {1:.0f}MB | Util {2:3.0f}% | Total {3:.0f}MB".format(gpu.memoryFree, gpu.memoryUsed, gpu.memoryUtil*100, gpu.memoryTotal))
When using a deep learning framework such as PyTorch or TensorFlow, you can also use the APIs provided by the framework for query.
