HBase Output

Overview

The HBase Output operator exports existing fields to specified columns of an HBase Outputtable.

Input and Output

Input: fields to be exported
Output: HBase table

Parameters

**Table 1** Operator parameters description
Parameter	Description	Node Type	Mandatory	Default Value
HBase table type	HBase table type. The options include normal (common HBase table) and phoenix.	enum	Yes	normal
NULL value processing mode	Null value processing mode. Selecting the option button indicates to convert null values to empty strings and save them. Deselecting the option button indicates the data is not saved.	boolean	No	The option button is not selected.
HBase output fields	HBase output information: field name: Names of output fields. table name: HBase table name. family name: HBase column family name. If it is not configured during HBase/Phoenix table creation, the default value is '0'. column name: HBase column name. type: Field type. If type is set to DATE, TIME, or TIMESTAMP, you must specify a time format. If type is set to other values, the time format is invalid. An example time format is yyyyMMdd HH:mm:ss. length: Field value length. If the actual field value is excessively long, the value is cut based on the configured length. When type is set to CHAR, spaces are added to the field value for supplement if the actual field value length is less than the configured length. When type is set to VARCHAR, no space is added to the field value for supplement if the actual field value length is less than the configured length. Primary Key: Indicates whether a column is a primary key column. A common HBase table can have only one primary key, while a phoenix table can have multiple primary keys. If multiple primary keys are configured, they are combined according to the configuration sequence. At least one primary key column must be configured.	map	Yes	None

Data Processing Rule

The field values are exported to the HBase table.
When the original data contains NULL values, if the NULL value processing mode is selected, the NULL values are converted to empty strings and saved. If the NULL value processing mode button is not selected, the data is not saved.

Example

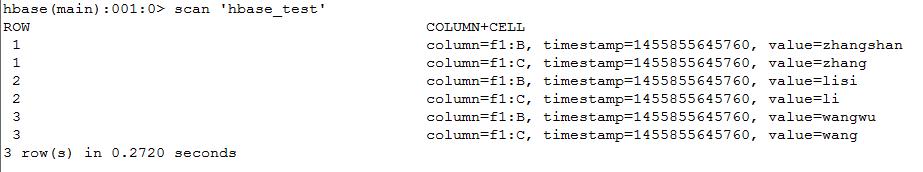

Using table input as an example, after the fields are generated, the HBase Output operator exports them to the related HBase table and stores the data in the test table, as shown in the following figure.
