Interconnecting Hive with External LDAP

This section applies to MRS 3.1.0 or later.

1. Log in to FusionInsight Manager.
2. On FusionInsight Manager, choose Cluster > Name of the desired cluster > Services > Hive. On the page that is displayed, click the Configurations tab then the All Configurations sub-tab. On this sub-tab page, click HiveServer(Role) and select Security.



3. Set the following parameters.

   Table 1 Parameter configuration

   Parameter	Description	Remarks
   hive.server2.authentication	HiveServer authentication mode	Value: KERBEROS or LDAP Default value: KERBEROS
   hive.server2.authentication.ldap.baseDN	LDAP base DN	-
   hive.server2.authentication.ldap.password	LDAP password	LDAP password used for health check
   hive.server2.authentication.ldap.url.ip	LDAP IP address	-
   hive.server2.authentication.ldap.url.port	LDAP port number	Default value: 389
   hive.server2.authentication.ldap.userDNPattern	LDAP user DN pattern	Separate multiple values with colons (:), for example, cn=%s,ou=People1,dc=huawei,dc=com: cn=%s,ou=People2,dc=huawei,dc=com.
   hive.server2.authentication.ldap.username	LDAP username	LDAP username used for health check

4. After the modification, click Save in the upper left corner. In the displayed dialog box, click OK.

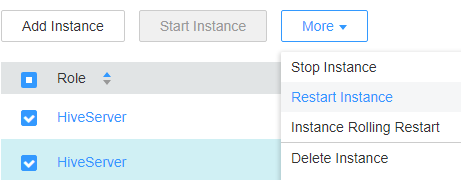

5. Choose Cluster > Name of the desired cluster > Services > Hive > Instance. On the displayed page, select the instances whose Configuration Status is Expired, choose More > Restart Instance, and restart the instance.
