Example 3: Disabling a Livestream

Scenario

If live content is non-compliant or the ingest URL has been used by unauthorized users, you can call an API to disable the livestream to protect your content.

This section describes how to disable a livestream by calling an API.

Prerequisites

• You have determined the region where the ingest domain name for which a livestream needs to be disabled is located and obtained the endpoint of the region from .
• You have obtained the project ID of the region where the ingest domain name is located. For details, see Obtaining a Project ID.

Overall Process

• Obtain information about the livestream to be disabled.
• Disable the livestream.
• Query disabled streams.

Procedure

1. Log in to the Live console and choose Streaming > Streams to obtain information about the livestream to be disabled, including the ingest domain name, App Name, and Stream Name.
2. Obtain a user token and use it to authenticate the calling of Live APIs.

   For details, see Making an API Request. CN North-Beijing4 is used as an example. If you need to call a Live API in another region, replace the endpoint with the IAM endpoint of the region.

   POST https://iam.cn-north-4.myhuaweicloud.com/v3/auth/tokens
   Content-Type: application/json
   {
     "auth": {
       "identity": {
         "methods": [
           "password"
         ],
         "password": {
           "user": {
             "name": "username",
             "password": "password",
             "domain": {
               "name": "domainname"
             }
           }
         }
       },
       "scope": {
         "project": {
            "name": "projectname"
    }
       }
     }
   }

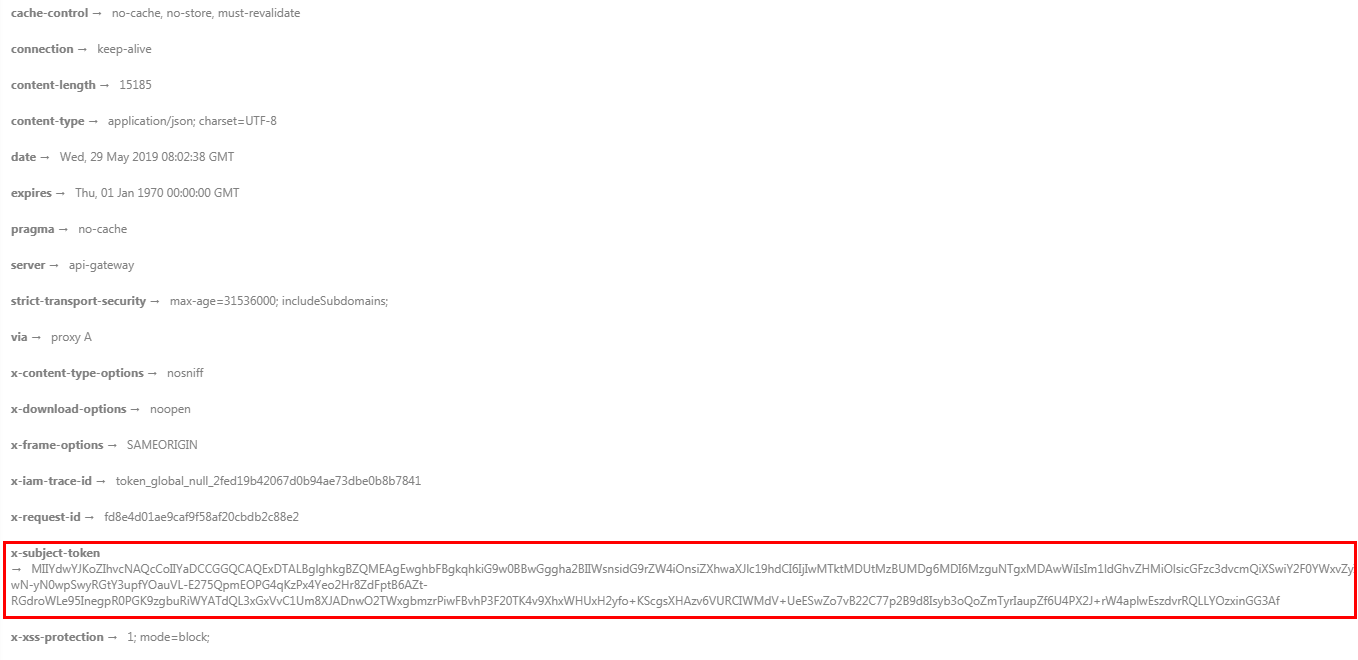

   As shown in Figure 1, information in the red box indicates the user token.

   Figure 1 Obtaining the user token


3. Call the API for disabling a push stream and configure related parameters.
   1. Select the POST request method and enter the request URI.

      https://{endpoint}/v1/{project_id}/stream/blocks

   2. In the request header, add X-Auth-Token and set its value to be the token obtained in 2.
   3. Specify the following parameters in the request body:

      {
        "domain" : "publish.example.huawei.com",
        "app_name" : "live",
        "stream_name" : "huawei",
        "resume_time" : "2020-05-19T21:10:15Z"
      }

      resume_time specifies the time of resuming stream push. The value is a UTC time in the format of yyyy-mm-ddThh:mm:ssZ. If this parameter is not specified, the value defaults to seven days from the current time. The value must be later than the current time and cannot exceed a maximum of 90 days in the future.

   4. If the request succeeds, only a status code 204 is returned.

4. Call the API for querying disabled streams to check whether the stream is included in the returned list.
   1. Select the GET request method and enter the request URI.

      https://{endpoint}/v1/{project_id}/stream/blocks?domain=publish.example.huawei.com&app_name=live&stream_name=huawei

   2. In the request header, add X-Auth-Token and set its value to be the token obtained in 2.
   3. View the queried stream information if the request succeeds.

      {
        "total" : 1,
        "blocks" : [ {
          "app_name" : "live",
          "stream_name" : "huawei",
          "resume_time" : "2020-05-19T21:10:15Z"
        }
      ]
      }
