Scenario

Figure 1 shows the typical networking where a Huawei Cloud VPN gateway connects to strongSwan in policy-based mode.

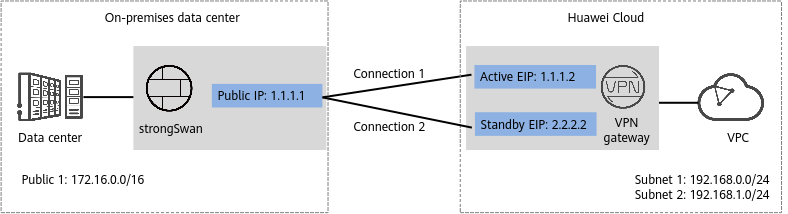

Figure 1 Typical networking diagram

In this scenario, strongSwan has only one IP address, and the Huawei Cloud VPN gateway uses the active/standby mode. A VPN connection needs to be created between each of the active and standby EIPs of the Huawei Cloud VPN gateway and the IP address of strongSwan.

Data Plan

Table 1 Data plan

Category

Item

Data

Huawei Cloud VPC

Subnet to be interconnected
  • 192.168.0.0/24
  • 192.168.1.0/24

Huawei Cloud VPN gateway

Interconnection subnet

Subnet used for communication between the VPN gateway and the VPC of the on-premises data center. Ensure that the selected interconnection subnet has four or more assignable IP addresses.

192.168.2.0/24

EIP

EIPs are automatically generated when you buy them. By default, a VPN gateway uses two EIPs. In this example, the EIPs are as follows:

  • Active EIP: 1.1.1.2
  • Standby EIP: 2.2.2.2

VPC at the strongSwan side

Subnet to be interconnected

172.16.0.0/16

VPN gateway at the strongSwan side

Public IP address

This public IP address is assigned by a carrier. In this example, the public IP address is as follows:

1.1.1.1

Private IP address

In this example, the private IP address is as follows:

172.16.0.233

IKE and IPsec policies

PSK

Test@123

IKE policy
  • Authentication algorithm: SHA1
  • Encryption algorithm: AES-128
  • DH algorithm: group 2
  • IKE version: IKEv2
  • Lifetime (s): 86400
  • Local ID: IP address
  • Peer ID: IP address

IPsec policy
  • Authentication algorithm: SHA1
  • Encryption algorithm: AES-128
  • PFS: DH group 2
  • Transfer protocol: ESP
  • Lifetime (s): 86400
